Broadcom

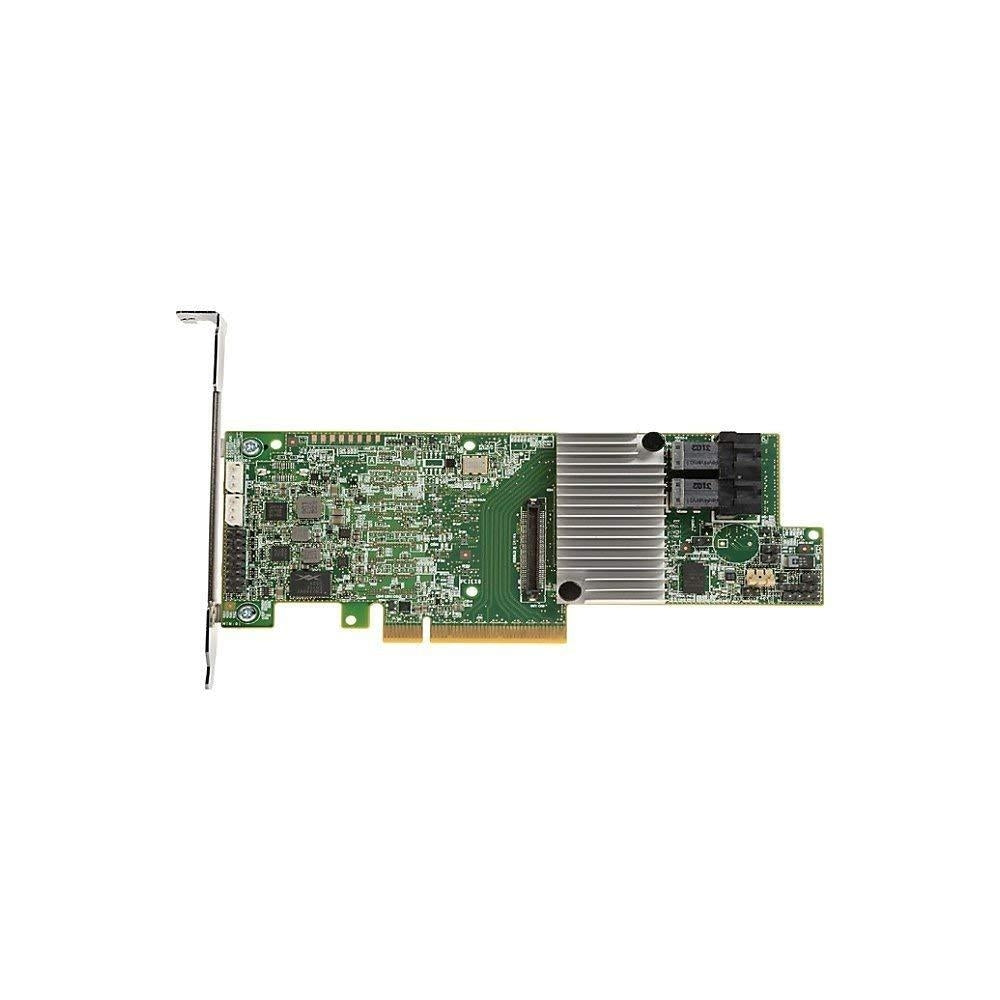

LSI Logic I/O Controller 05-25420-08 MegaRAID 9361-8i Single 8Port SATA/SAS PCI-Express 3 1GB DDR3 Brown Box

$971.98 CAD
Shipping calculated at checkout.
Item model number: 05-25420-08
VLSKU: 104100
  • Datacenter, cloud and high-performance computing environments not only require large amounts of storage capacity, they also must provide the data protection and performance today's applications and end users demand. The MegaRAID SAS 9361-8i 12Gb/s SAS and SATA RAID controller card addresses these needs by delivering proven performance and RAID data protection for a range of server storage applications.




Specification
Ports & interfaces
Supported storage drive interfaces SAS, Serial ATA PCI Express slots version 3.0
Internal SAS ports 8 Host interface PCI Express x8
Performance
Internal memory 1024 MB Number of devices supported 240
Data transfer rate 12 Gbit/s S.M.A.R.T. support Yes
RAID levels 0, 1, 5, 6, 10, 50, 60 Internal memory type DDR3
Memory clock speed 1866 MHz SSD support Yes
Performance
Online Capacity Expansion Yes Certification EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick
Mean time between failures (MTBF) 1343187 h RAID Level Migration Yes
Power
Voltage 3.3, 12
System requirements
Windows operating systems supported Yes Linux operating systems supported Yes
