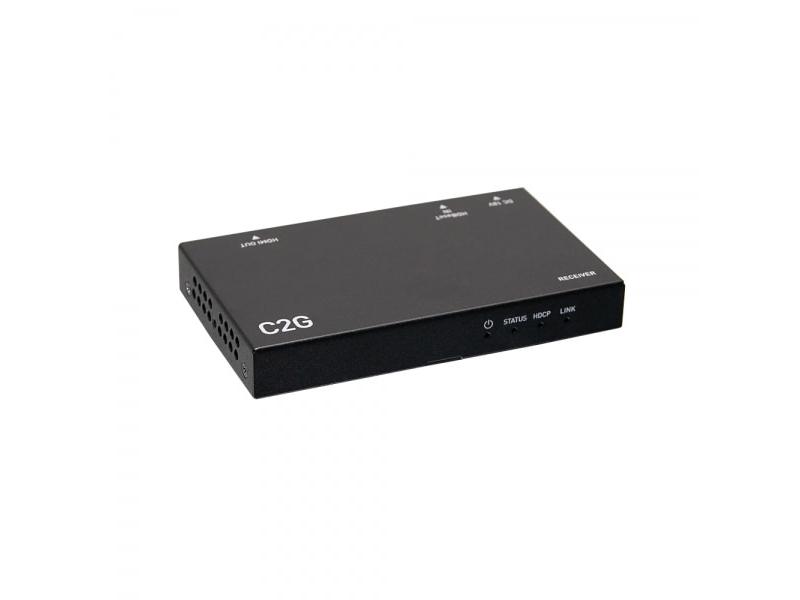

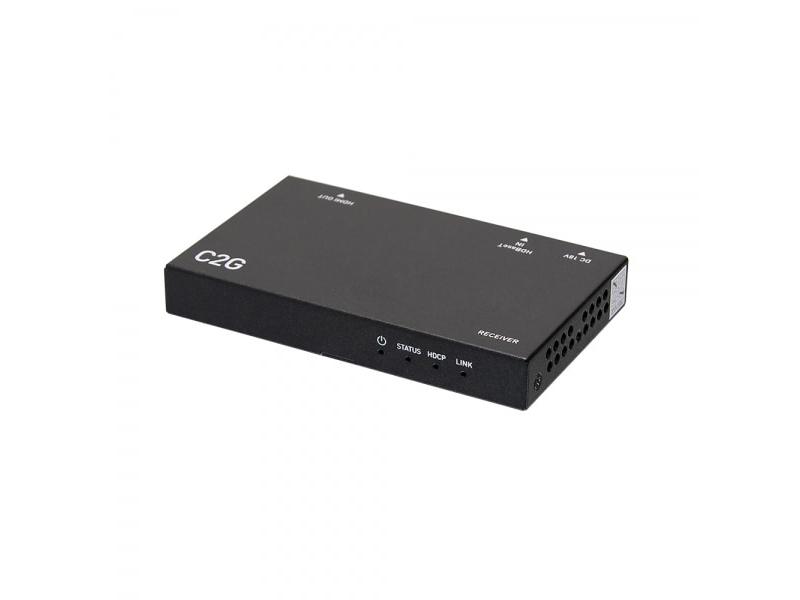

C2G HDBaseT HDMI Extender over Cat Cable - HDMI Transmitter Box to Receiver Receiver Box - 4K 60Hz (C2G30010)
Item model number: C2G30010
- HDBaseT
- HDBaseT HDMI Extender
- 4K HDMI Extender
- Extend 4K 60Hz up to 115ft and 1080p 60Hz up to 200ft with Cat5e/6 cable
- HDCP 2.2 compliant
- HDBaseT Transmitter
- HDMI Transmitter
- Extend 4K 60Hz up to 130ft and 1080p 60Hz up to 230ft with Cat6a cable
- Power over Cable (PoC)
- C2G 5-Year Warranty
The HDMI HDBaseT Extender over Cat Box Transmitter to Box Receiver - 4K 60Hz allows a 4K HDMI source to be extended up to 130ft to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution for delivering uncompressed HDMI video and audio to displays in conference rooms, classrooms, lecture halls, and many other installation needs that are far beyond the length limitations of standard HDMI cabling.
This HDMI HDBaseT Extender supports 4K resolutions at 60Hz up to 130ft and 1080p at 60Hz up to 230ft when using a single, recommended Cat6a Ethernet cable. Also, extend 4K at 60Hz up to 115ft and 1080p at 60Hz up to 200ft when using Cat5e or Cat6 cabling.
This HDMI HDBaseT Extender is HDCP 2.2 compliant, making sure that the connection between the source and display is secure. The bi-directional PoC (Power over Cable) function allows both the transmitter and the receiver to be powered on when either side is plugged into power, allowing for greater flexibility in installations.
Note: Ensure a solid reliable connection between the 4K HDMI HDBaseT Extender and critical equipment.
OVERVIEW | |||
Brand | C2G | Product Line | C2G |
Model | HDMI HDBaseT over Cat5e, Cat6, Cat6a Extender Kit - Transmitter to Box Receiver - 4K 60Hz | Manufacturer | Cables To Go |
NETWORK & COMMUNICATION | |||
Connectivity Technology | Wired | Data Link Protocols | HDMI |
Features | 4K resolution support, HDR 4K60 8-bit 4:2:0 compatible | Form Factor | External |
Max Transfer Distance | 230 ft | Power Over Ethernet (PoE) | PoC |

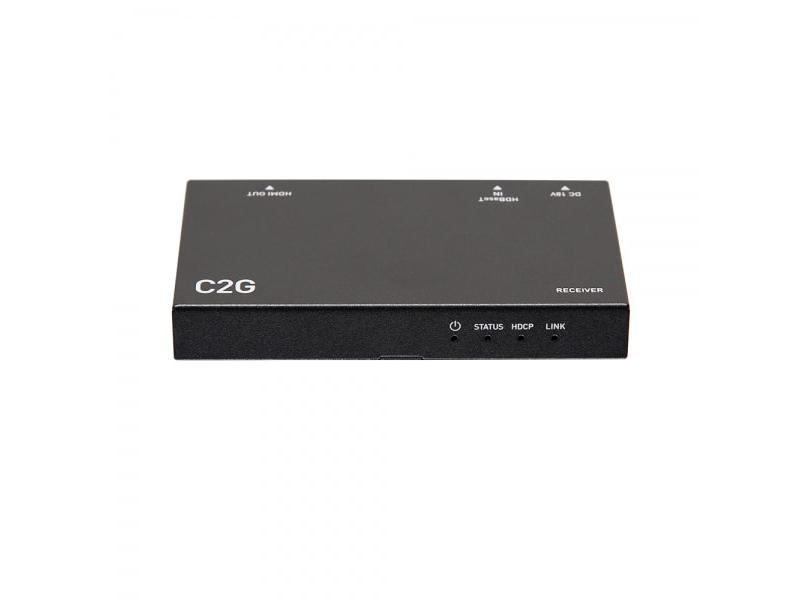

Product Type | Video/audio extender | Status Indicators | HDCP, Link, Status |
CONNECTIVITY | |||

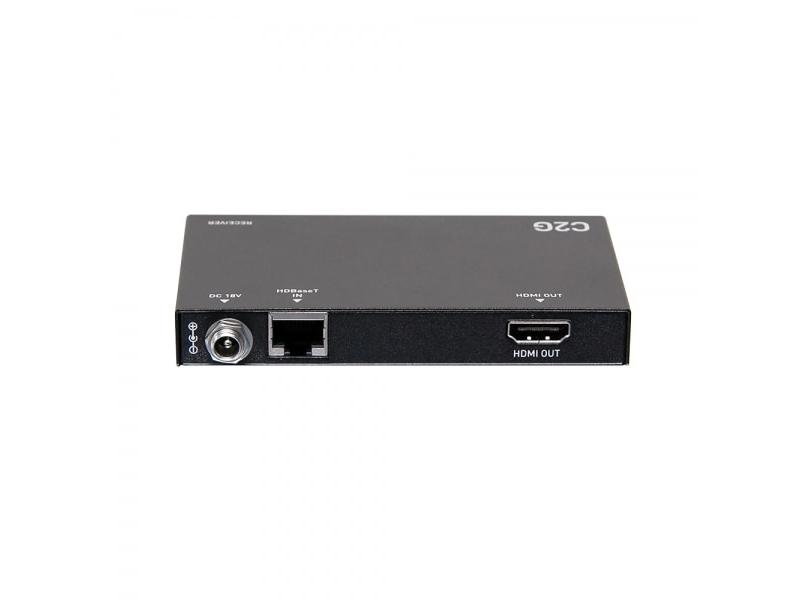

Interface Provided | 1 x HDBaseT (local unit) - RJ-45 female, 1 x HDBaseT (remote unit) - RJ-45 female, 1 x HDMI (input) - 19 pin HDMI Type A female, 1 x HDMI (output) - 19 pin HDMI Type A female | ||
VIDEO | |||
KVP Max Resolution | 4096 x 2160 | ||
POWER | |||
Frequency | 50/60 hertz | Power Supplies Installed | 2 |
TECHNICAL INFORMATION | |||
KVM V-Sync Rate At Max Resolution | 60 Hz | Max Operating Temperature | 113° F |
Min Operating Temperature | 32° F | Operating Humidity | 10 - 90% (non-condensing) |
PRODUCT INFORMATION | |||
Device Type | External power adapter | Packaged Quantity | 1 |
DIMENSIONS & WEIGHT | |||
Dimensions (WxDxH)/Weight Details | Receiver: 5.1 in x 2.5 in x 0.6 in, Transmitter: 5.1 in x 2.5 in x 0.6 in | Weight | 22.22 oz |
PHYSICAL CHARACTERISTICS | |||
Color | Black | Color Category | Black |
CERTIFICATIONS & LISTINGS | |||
Compliant Standards | HDCP 2.2, RoHS 2 (2011/65/EU) | ENERGY STAR Certified | No |
EPEAT Compliant | No | TCO Certified | No |
SERVICE & SUPPORT | |||
Service & Support Details | Limited warranty - 3 years | Limited Warranty | 3 Year |
