Item model number: 220-P2-0850-X1
VLSKU: 103608
  • EVGA 850 P2 - "Platinum Performance"
  • 80 PLUS Platinum certified, with 92% (115VAC) / 94% (220VAC~240VAC) efficiency or higher under typical loads
  • Fan Size / Bearing: 140mm Double Ball Bearing
  • 10 Year Warranty and unparalleled EVGA Customer Support
  • Heavy­duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection)

EVGA SuperNOVA 850 P2, 80+ PLATINUM 850W, Fully Modular , EVGA ECO Mode, 10 Year Warranty , Includes FREE Power On Self Tester Power Supply 220-P2-0850-X1_VLCanada

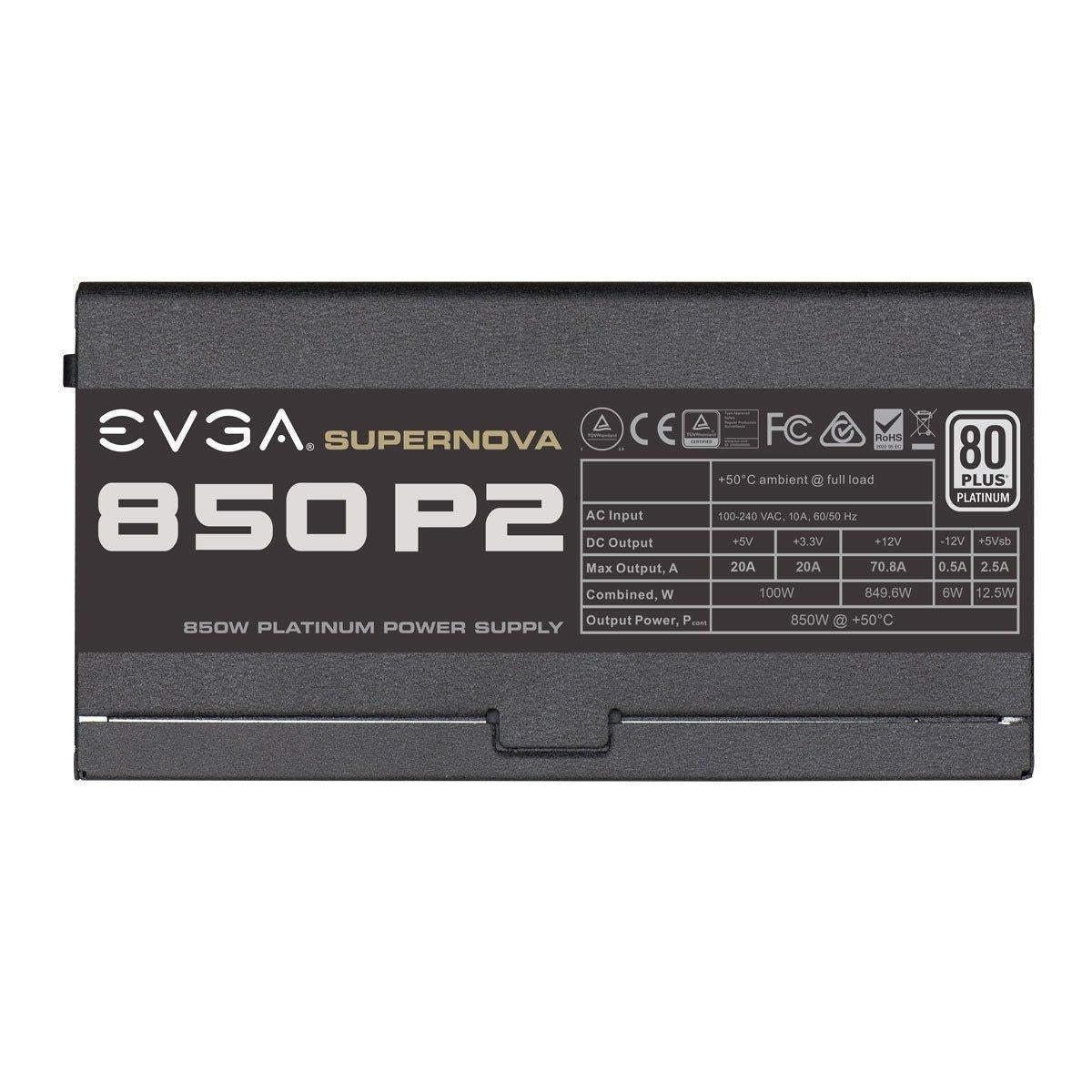

Power
Combined power (-12V) 6 W Max output current (+12V) 70.8 A
Max output current (+5V) 20 A AC input frequency 50 - 60
Combined power (+5V) 100 W Combined power (+12V) 849.6 W
AC input voltage 100 - 240 Max output current (-12V) 0.6 A
Max output current (+5Vsb) 2.6 A Max output current (+3.3V) 20 A
Combined power (+5Vsb) 12.5 W Power protection features Over power, Over voltage, Short circuit, Under voltage
Combined power (+3.3V) 100 W Total power 850 W
Cooling
Fan location Top Fan diameter 14 cm
Number of fans 1 fan(s)

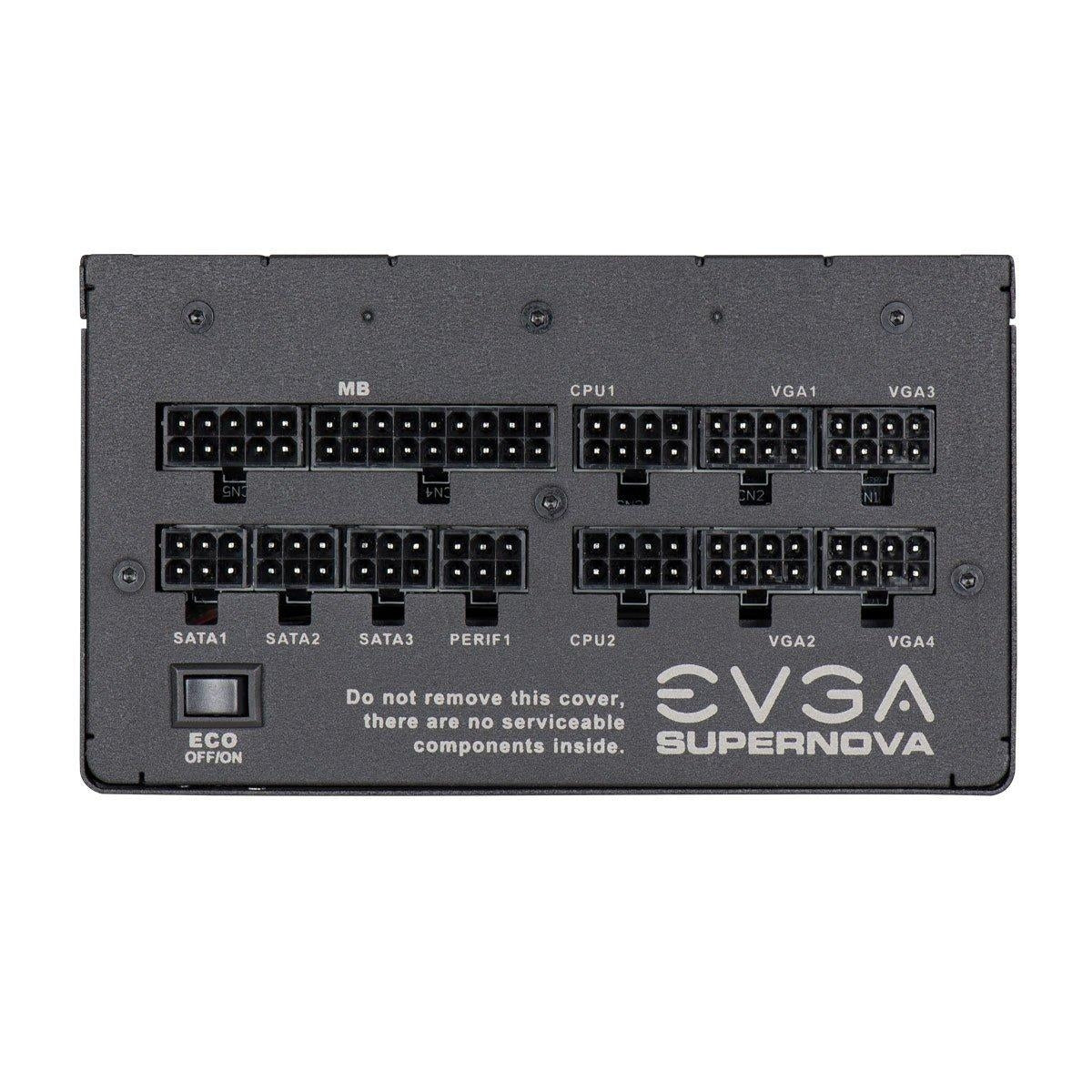

Ports & interfaces
PCI Express power connectors (6-pin) 2 Peripheral (Molex) power connectors (4-pin) 4
Number of SATA power connectors 10 Motherboard power connector 24-pin ATX
PCI Express power connectors (6+2 pin) 4
Ports & interfaces
Floppy drive power connector 1 Floppy disk drive connector Yes
ATX Power connector (24-pin) Yes CPU power connector (4+4 pin) Yes
PCI Express connector Yes
Performance
Power supply unit (PSU) form factor ATX Purpose PC
Mean time between failures (MTBF) 100000 h
Design
Colour of product Black
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Weight & dimensions
Width 150 mm Height 85 mm
Depth 165 mm Weight 3.18 kg
Certificates
Certification TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement 80 PLUS certification 80 PLUS Platinum
