Item model number: 100-W1-0500-KR
VLSKU: 103542

  • EVGA 500W – “Unbeatable Value”
  • 80 PLUS White certified, with 80% efficiency or higher under typical loads
  • Fan Size / Bearing: 120mm Sleeve Bearing
  • 3 Year Warranty and unparalleled EVGA Customer Support
  • Heavy-duty protections, including OVP (Over Voltage Protection); UVP (Under Voltage Protection, OCP (Over Current Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection)



EVGA 500 W1, 80+ WHITE 500W, 3 Year Warranty, Power Supply 100-W1-0500-KR_VlCanada

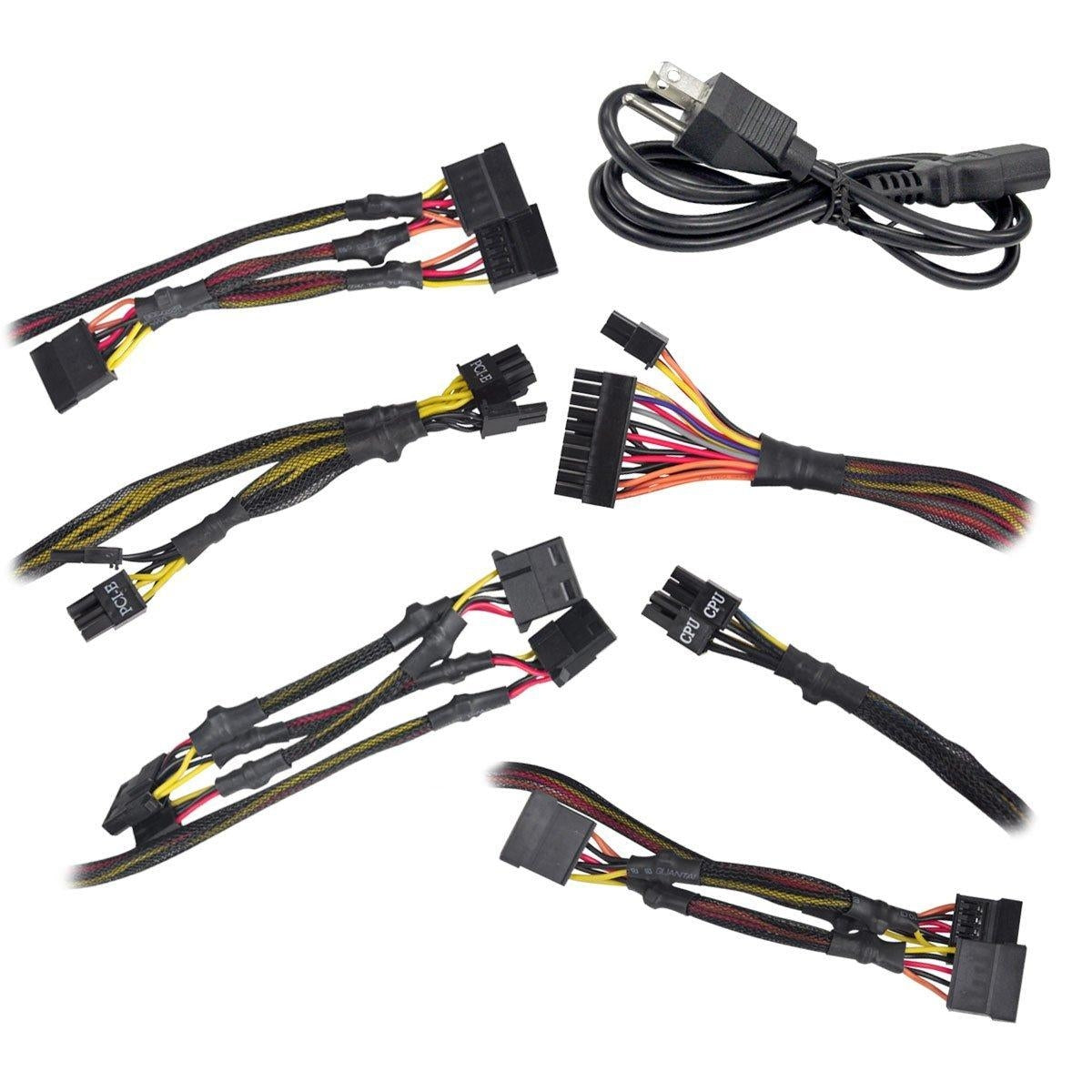

CABLE LENGTH

ATX CABLE 1x 550mm
EPS CABLE 1x 600mm
PCIE CABLE 1x 550mm, 670mm
SATA CABLE 2x 450mm, 570mm, 690mm
FOUR-PIN PERIPHERAL CABLE 1x 450mm, 570mm, 690mm (f)
FLOPPY ADAPTER 1x 120mm
AC POWER 1x 1200mm (m)
MODULAR CABLE TYPE No

CONNECTOR QUANTITY

24 PIN ATX 1x
EPS (CPU) 1x 8pin (4+4)
PCIE 2x 8pin (6+2)
SATA 6x
FOUR-PIN PERIPHERAL 3x
FLOPPY 1x

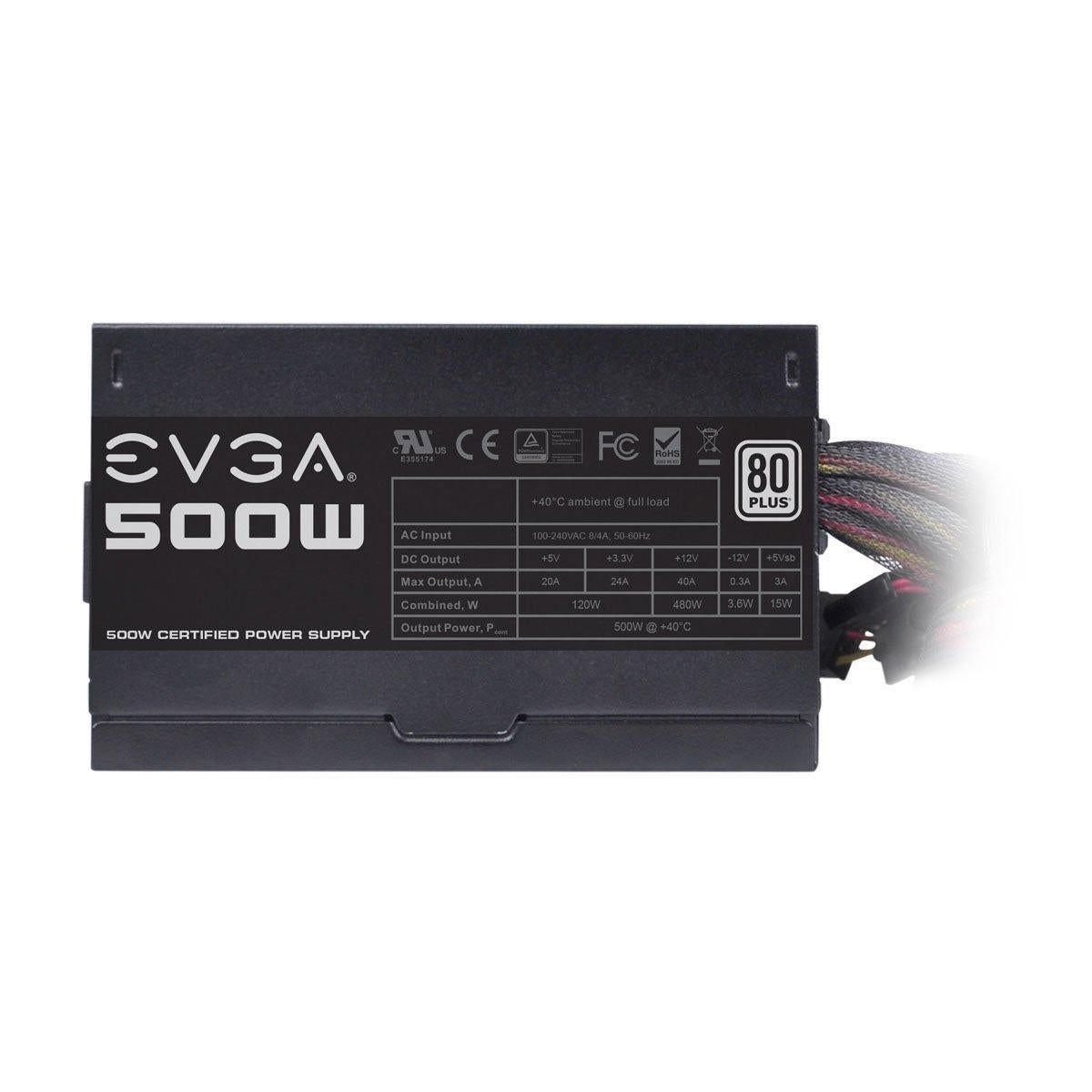

POWER SPECS

AC Input 100 - 240 VAC, 8-4A, 50 - 60 Hz
Rail +3.3V +5V +12V +5Vsb -12V
Max Output 24A 20A 40A 3A 0.3A
40A
120W 480W 15W 3.6W
Total 500W @ +40C

ADDITIONAL DETAILS

OPERATING TEMPERATURE 0° to 40° C
JAPANESE CAPACITORS No
ECO MODE No
MTBF 100,000 Hours
NET WEIGHT 4 lbs
SIZE 85mm (H) x 150mm (W) x 140mm (L)
APPROVALS TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement
FAN SIZE / BEARING 120mm Sleeve Bearing
