Item model number: CP1000PFCLCD
  • 1000VA/600W PFC Sine Wave Battery Backup Uninterruptible Power Supply (UPS) System - designed to support Active PFC and conventional power supplies

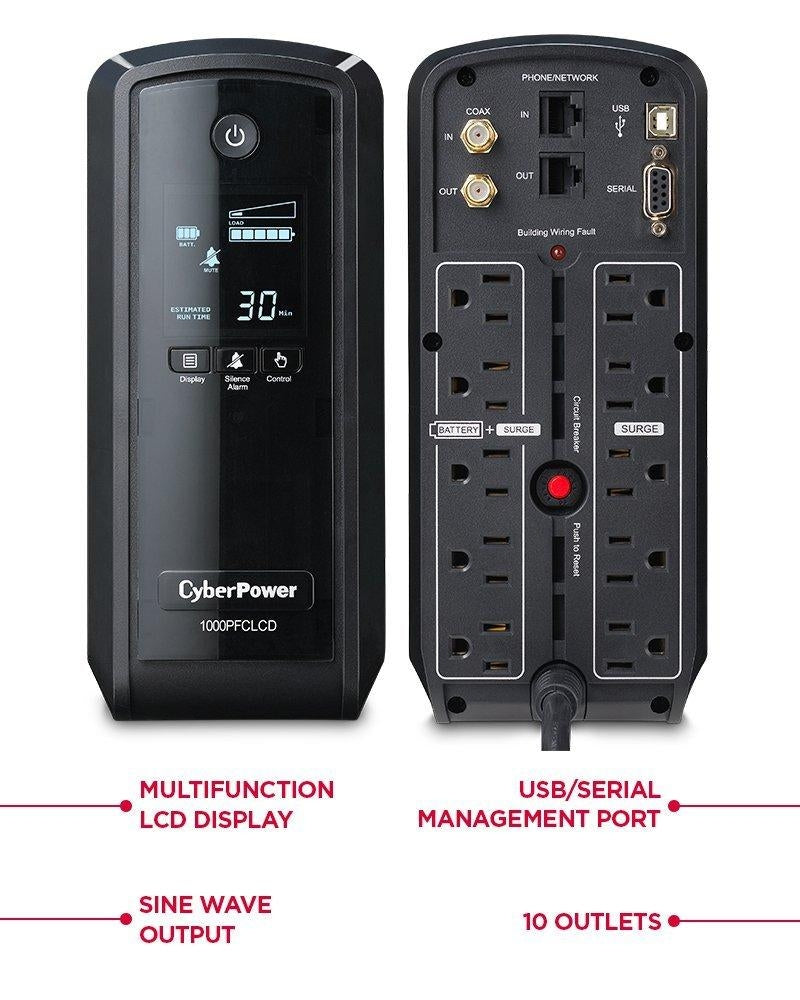

  • 10 NEMA 5-15R OUTLETS: (5) Battery Backup & Surge Protected Outlets, (5) Surge Protected Outlets safeguard servers, workstations, network devices and telecom equipment

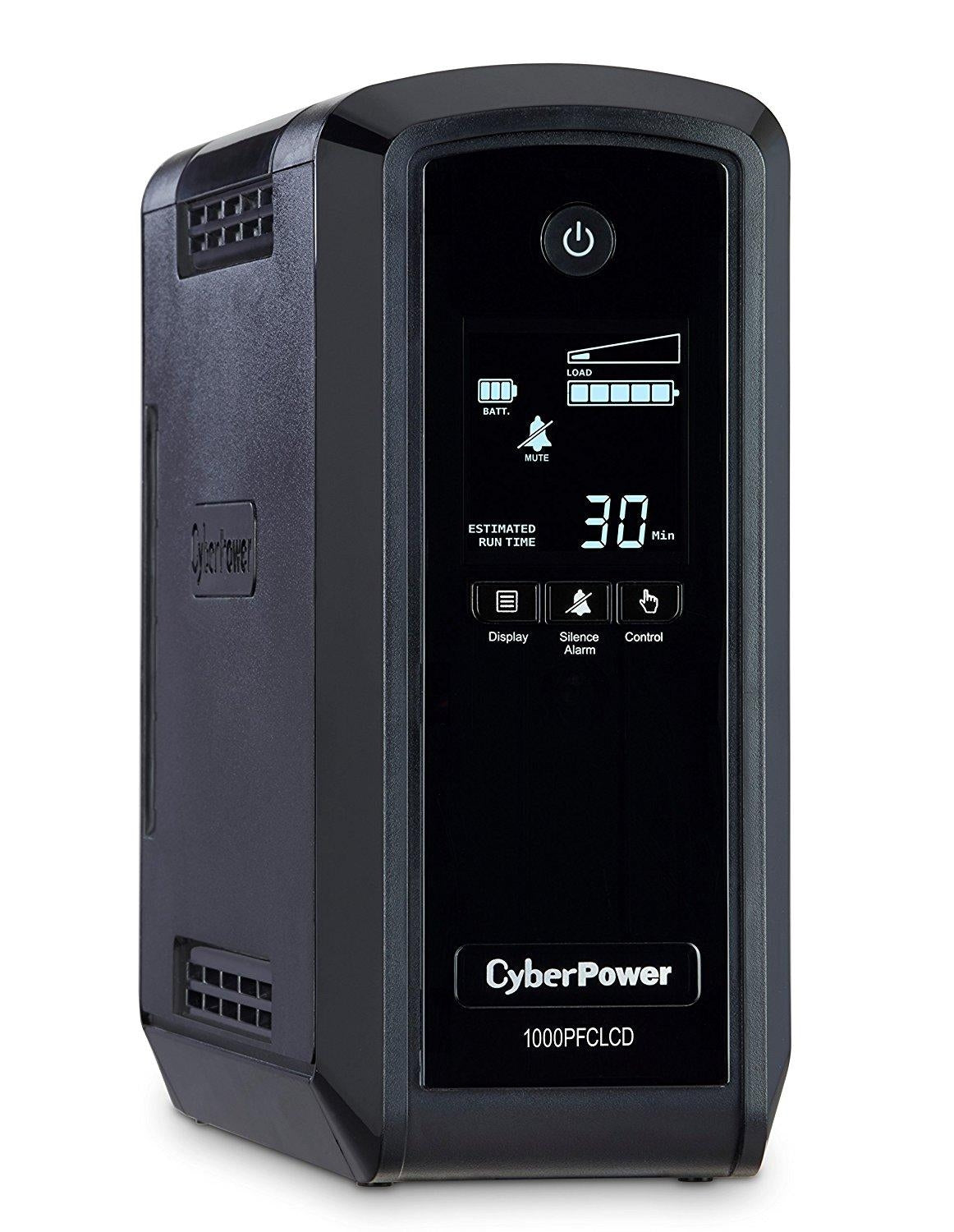

  • MULTIFUNCTION LCD PANEL: Displays immediate, detailed information on battery and power conditions, including: estimated runtime, battery capacity, load capacity, etc.
  • AUTOMATIC VOLTAGE REGULATION (AVR): Corrects minor power fluctuations without switching to battery power, thereby extending the life of the battery
  • 3-YEAR WARRANTY – INCLUDING THE BATTERY, $350,000 Connected Equipment Guarantee and FREE PowerPanel® Personal Edition Management Software (Download)




Power
Emergency Power Off (EPO) No Output power 600 W
Output power capacity 1000 VA Power supply input frequency 60
Surge energy rating 1030 J
Ports & interfaces
AC outlets quantity 10 AC outlet(s) Cable length 59.8" (1.52 m)
Modem (RJ-11) ports 1 Ethernet LAN (RJ-45) ports 1
Serial ports quantity 1 AC outlet types NEMA 5–15R
Battery
Hot-swap battery No Replacement battery cartridge HR9-12
Typical backup time at half load 9 min Battery recharge time 8 h
Battery type 12V/9AH Typical backup time at full load 3 min
Battery technology Sealed Lead Acid (VRLA)
Design
Color of product Black Display LCD
Form factor Tower
Performance
UPS topology Line-Interactive Audible alarm(s) Yes
LED indicators Yes
Operational conditions
Operating relative humidity (H-H) 0 - 90% Operating temperature (T-T) 0 - 40 °C
Certificates
Certification UL1778, cUL 107.3, FCC DOC Class B RoHS compliance Yes
Packaging content
Bundled software PowerPanel Personal Edition
Other features
Nominal input voltage 90-140 Weight (imperial) 15.9

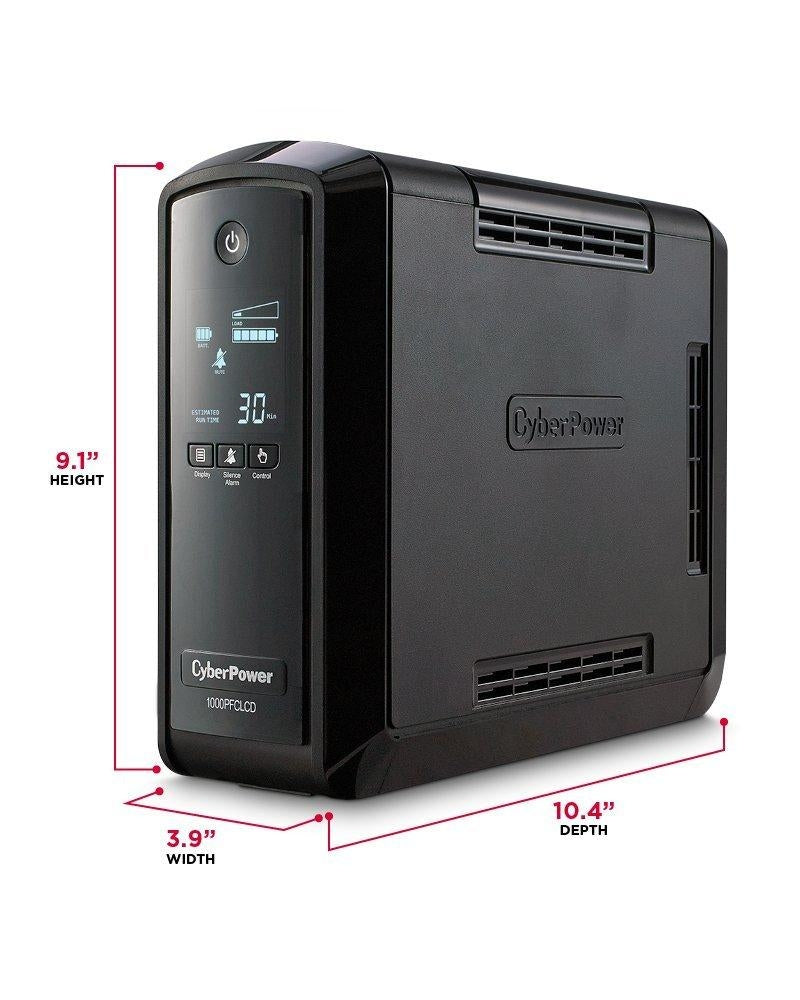

Dimensions (W x D x H) (imperial) 3.9 x 10.4 x 9.1" Nominal output voltage 120
Overload protection Yes
