Item model number: MH741
  • 4,000 ANSI lumens
  • Full 1080p (1920x1080) resolution
  • 10,000:1 high contrast ratio
  • Full HD 3D support
  • HDMI x 2, MHL




Projector
Projection technology DLP Supported aspect ratios 4:3, 16:10, 16:9
Projection distance 190.4 - 246.7" (4.84 - 6.27 m) Projection distance (wide) 1692.9 - 118.1" (43 - 3 m)
Keystone correction, vertical ± 30 Number of colors 1.073 billion colors
Native aspect ratio 16:9 Keystone correction, horizontal ± 30
Projector native resolution 1080p (1920x1080) Horizontal synchronization (max) 102 kHz
Screen size compatibility 60 - 300" Projector brightness 4000 ANSI lumens
Horizontal synchronization (min) 15 kHz Contrast ratio (typical) 10000:1
Lamps
Bulb power 260 W Service life of lamp (economic mode) 3500 h
Service life of lamp 2500 h Lamp power (economic mode) 260 W
Lens system
Optical zoom 1.3x Offset 130%
Digital zoom 2x Focal length range (f-f) 0.665 - 0.861" (16.9 - 21.9 mm)
Aperture range (F-F) 2.59 - 2.87 Throw ratio 1.15 - 1.49
Video
Supported 3D formats Frame Sequential, Frame packing 3D Yes
Supported graphics resolutions 640 x 480 (VGA),1920 x 1200 (WUXGA) Video color modes Cinema, Dynamic, Presentation, sRGB
Full HD Yes Supported video modes 480i,480p,576i,576p,720p,1080i,1080p
Analog signal format system NTSC,PAL,SECAM

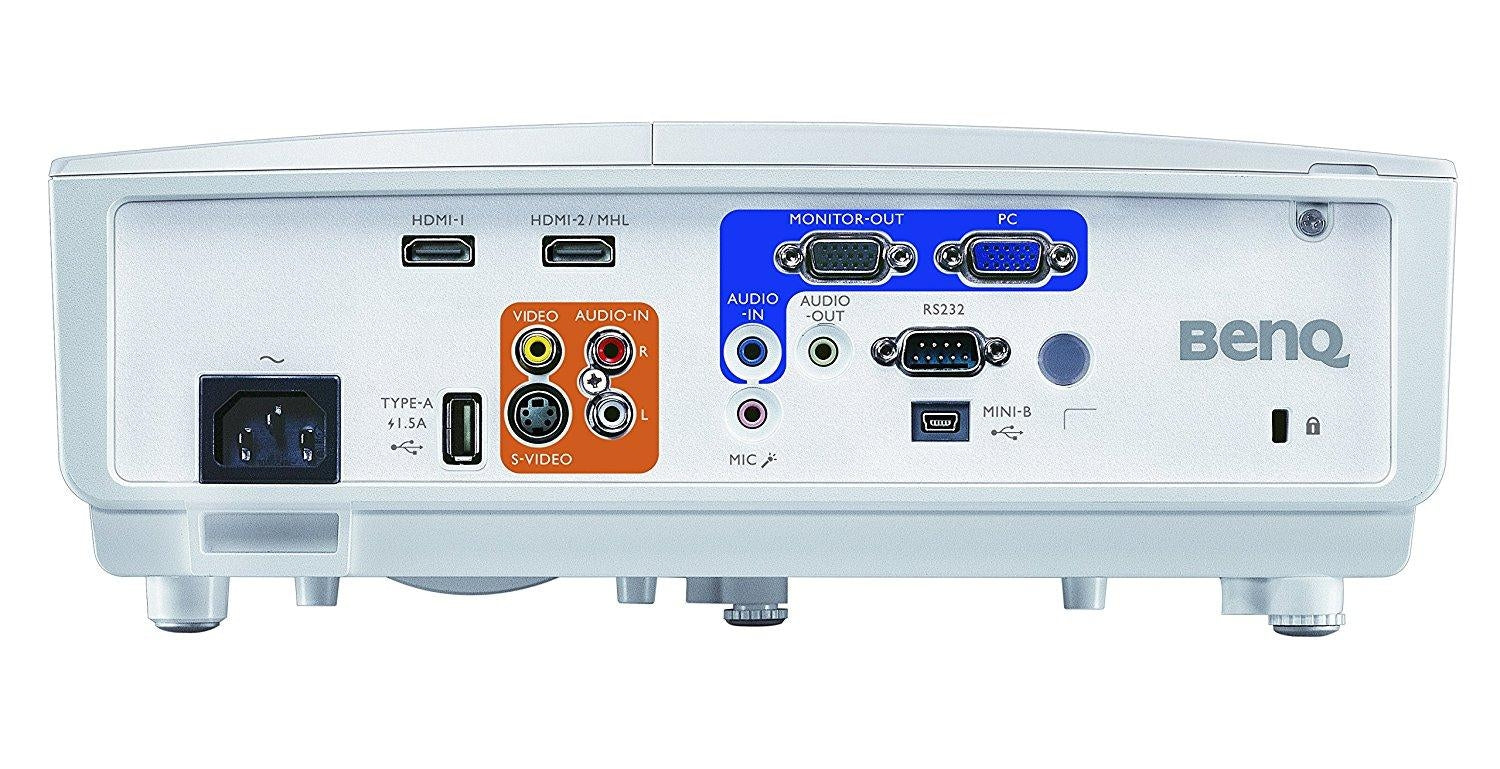

Ports & interfaces
RS-232 ports 1 Audio (L,R) out 1
Microphone in Yes USB 2.0 ports quantity 1
VGA (D-Sub) ports quantity 2 Composite video in 1
HDMI ports quantity 2 S-Video inputs quantity 1
Ports & interfaces
PC Audio in Yes PC Audio out Yes
Networking
Wi-Fi No Ethernet LAN No
Storage
Card reader integrated No
Performance
Vertical scan range 23 - 120 Hz On Screen Display (OSD) languages Arabic, BUL, Simplified Chinese, Traditional Chinese, CRO, Czech, Danish, German, Dutch, English, Finnish, French, Greek, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Romanian, Russian, Swedish, Thai, Turkish
HDCP Yes On Screen Display (OSD) Yes
Noise level (economic mode) 31 dB Noise level 36 dB
Multimedia
Built-in speaker(s) Yes RMS rated power 10 W
Number of built-in speakers 1
Design
Product type Desktop projector Color of product White
Ceiling mounting supported Yes
Power
Auto power off Yes Power consumption (economy mode) 270 W
AC input frequency 50 - 60 Power source AC
Power consumption (standby) 0.5 W Power consumption (PowerSave) 270 W
AC input voltage 100 - 240 Power consumption (typical) 330 W
Operational conditions
Operating relative humidity (H-H) 10 - 90% Operating temperature (T-T) 0 - 40 °C
Operating altitude 0 - 59015.7" (0 - 1499 m)
Weight & dimensions
Width 12.4" (314.2 mm) Height 4.57" (116 mm)
Depth 8.52" (216.3 mm) Weight 7.28 lbs (3.3 kg)
Packaging content
Manual Yes Handheld remote control Yes
Carrying case Yes Cables included AC, VGA
