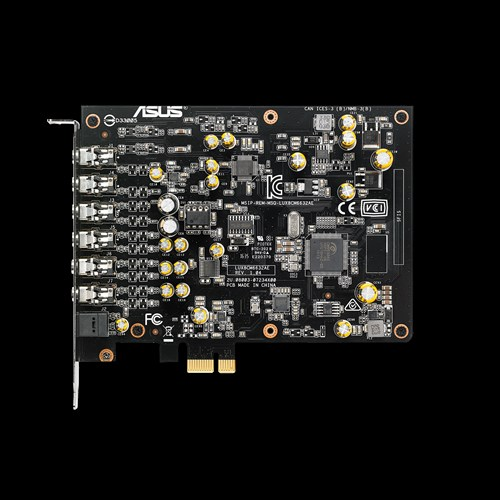

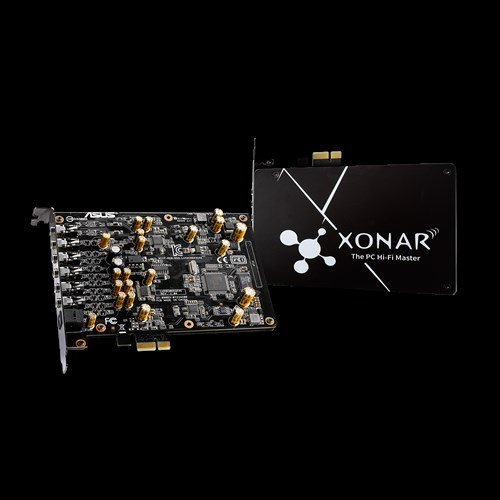

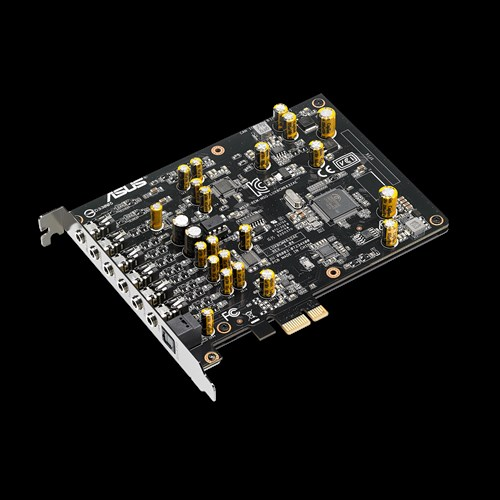

Item model number: Xonar AE
  • 192kHz/24-bit, 7.1 channel high resolution audio and 150ohm headphone amp
  • High-quality ESS DAC with 110dB signal-to-noise ratio (SNR)

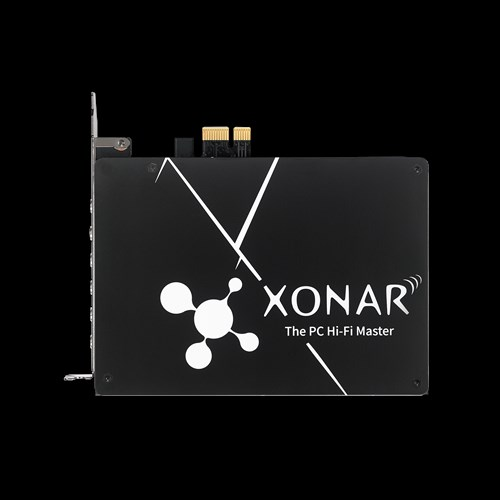

  • Exclusive EMI back plate with ASUS Hyper Grounding technology ensures minimal sound distortion and interference
  • Sonic Studio enables full audio control via an intuitive, one-page interface
  • Perfect Voice technology eliminates background noise for clear in-game communication




Audio
Audio output channels 7.1 channels Line-in Total Harmonic Distortion (THD) 0.0022%
Audio quality 32 bit Line-in Signal-to-Noise Ratio (SNR) 103 dB
Audio A/D Converter (ADC) 24-bit/192kHz Digital-to-Analog Conversion (DAC) 24-bit/192kHz
Line-out Total Harmonic Distortion (THD) 0.00158% Internal Yes
Frequency range 10 - 650000 Hz Line-out Signal-to-Noise Ratio (SNR) 110 dB

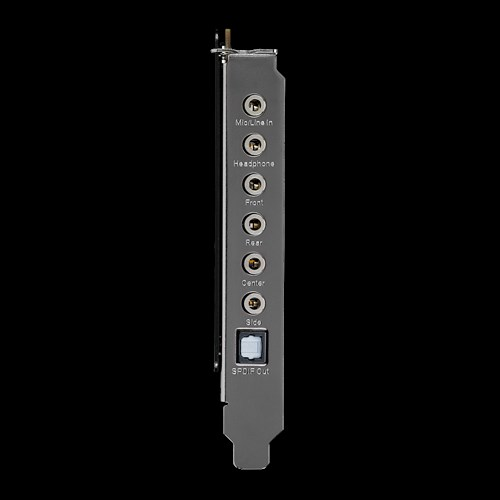

Ports & interfaces
Line-in Yes Subwoofer out Yes
Host interface PCI-E S/PDIF out port Yes
Mic/line-in combo port Yes Line-out Yes
Headphone outputs 1
Software
Windows operating systems supported Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
Technical details
Processor model 6632AE Colour of product Black
Headphone connectivity 3.5 mm
Packaging content
Quick start guide Yes
