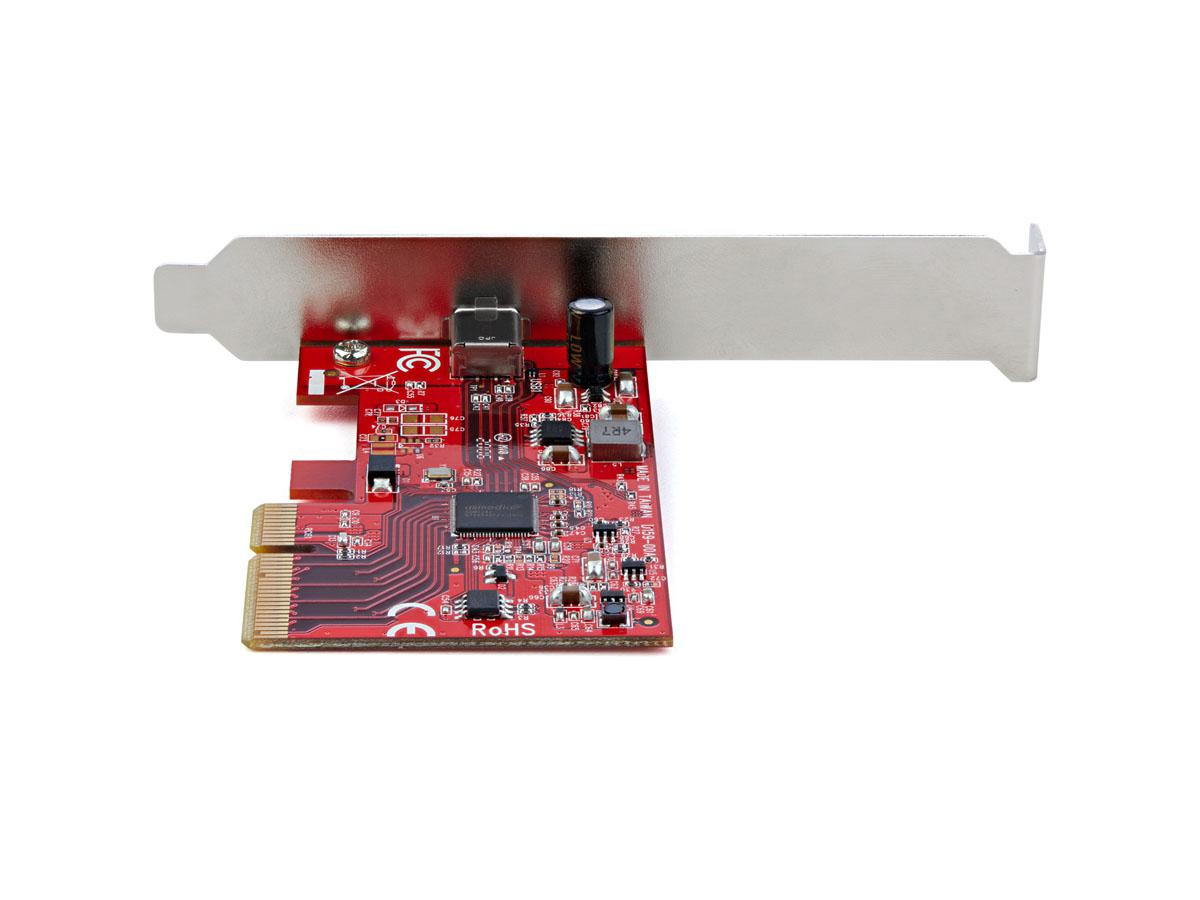

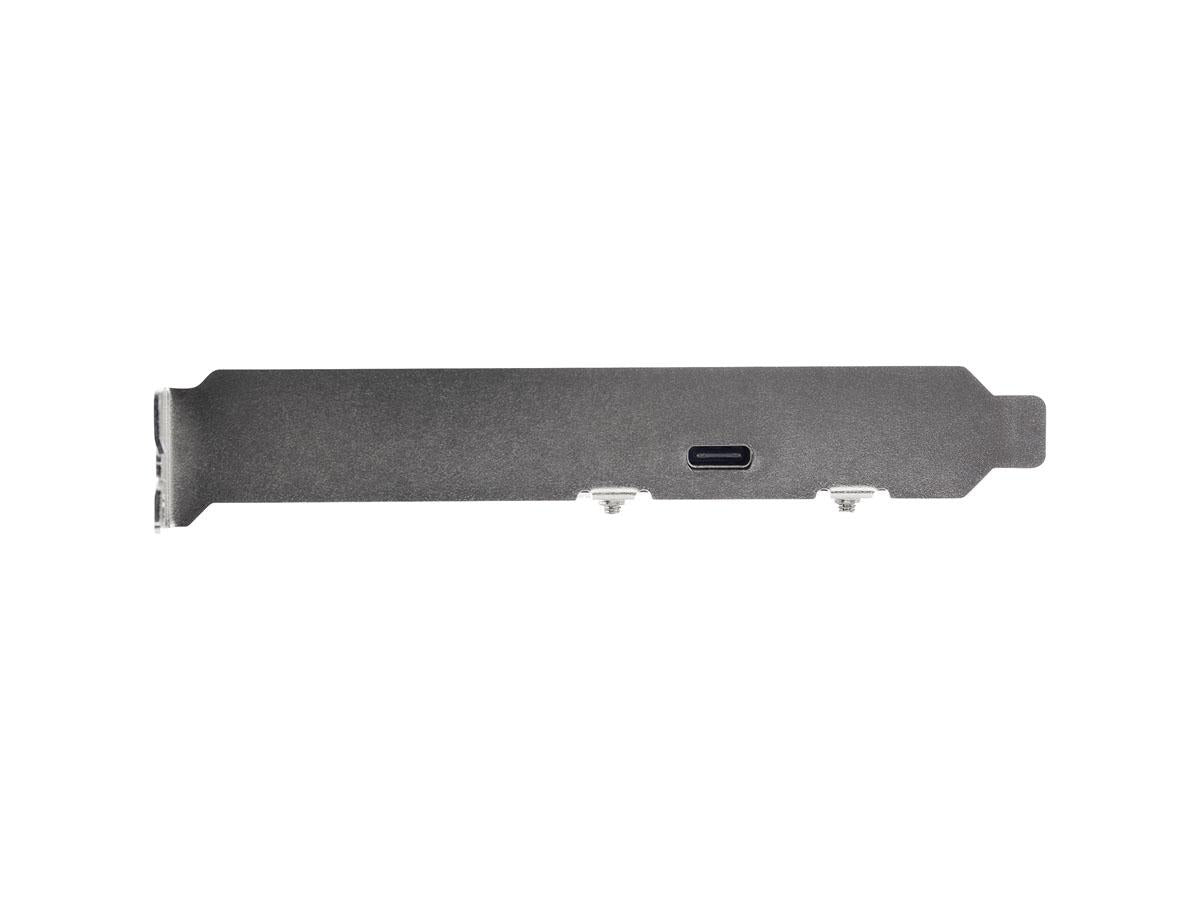

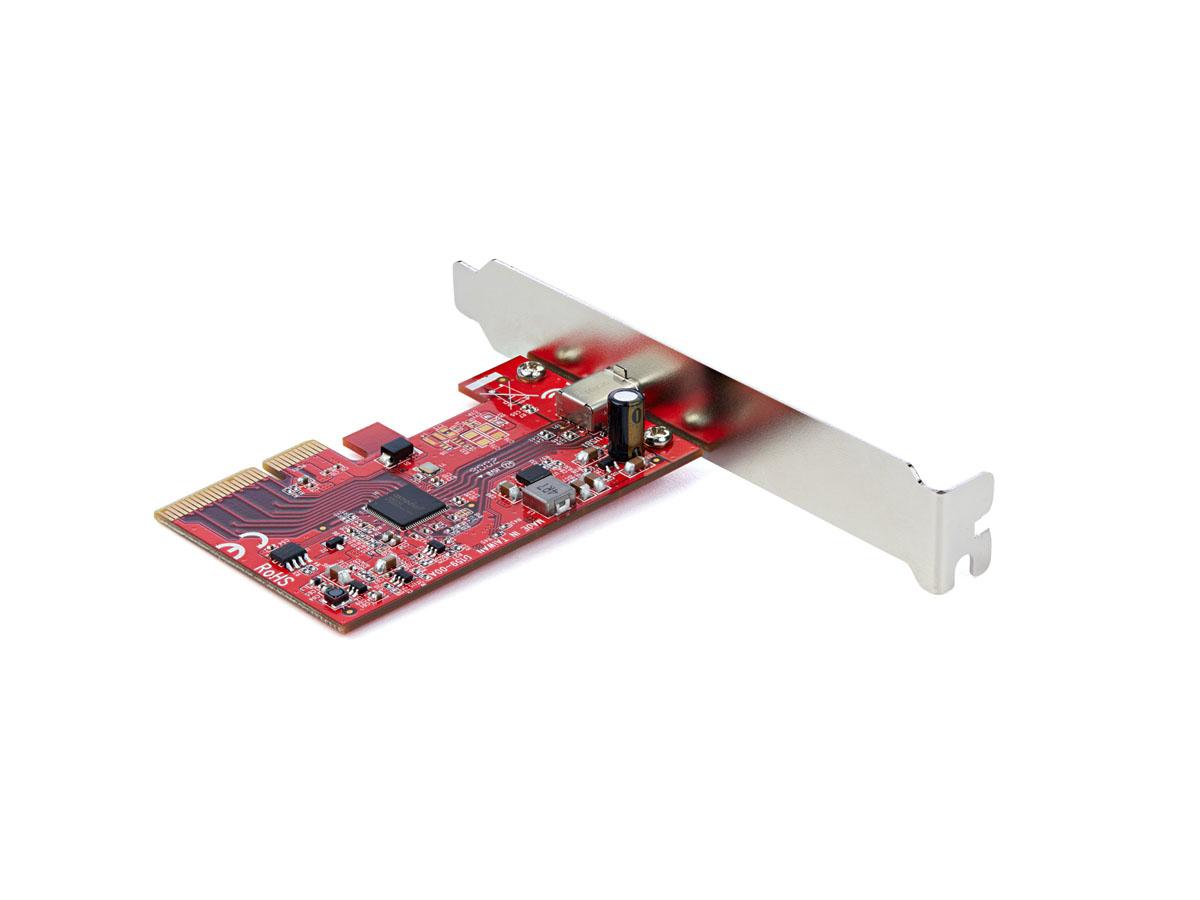

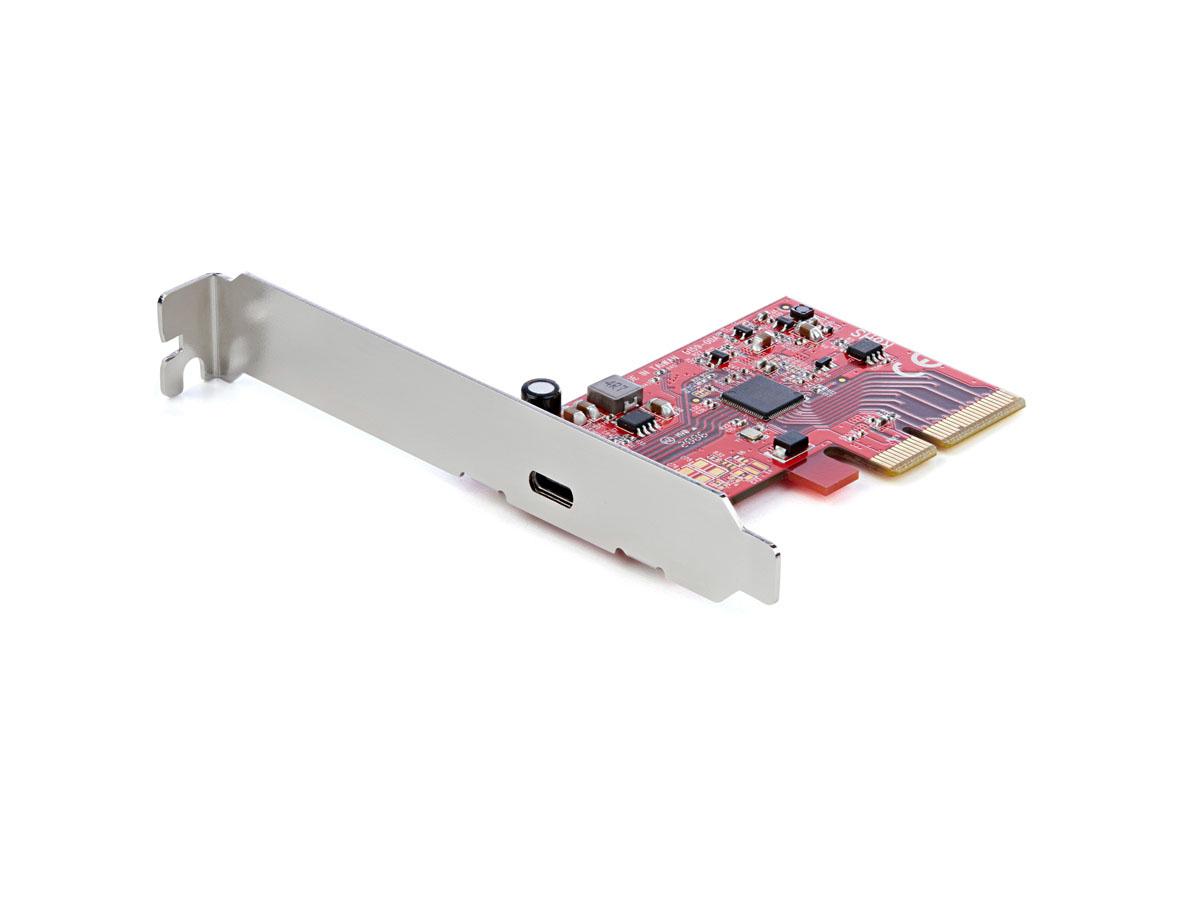

StarTech.com 1-Port USB 3.2 Gen 2x2 PCIe card with 1x USB Type-C Port - Up to SuperSpeed 20G (PEXUSB321C)
$74.59 CAD
/
Shipping calculated at checkout.
Item model number: PEXUSB321C
- Add USB-C 20Gbps port to your desktop PC PCIe Card; Up to 15W (5V @ 3A) to charge devices
- USB Type-C PCI Express card supports Multiple INs; UASP
- Data only; This card's USB-C port does not support DP Alt-Mode (video), Power Delivery, or Thunderbolt
- ASMedia ASM3242 controller using x4 lanes of PCIe 3.0; Up to 20Gbps for high-performance
- Full or low-profile, PCIe 3.0 x4 slot (Compatible w/PCIe 2.0); Windows/Linux/macOS w/auto drivers Win 8 & up; Works w/USB 3.2 Gen 2/3.0/2.0 devices
Specifications:
| PRIMARY INFORMATION | |||
| Product Description | StarTech.com USB 3.2 Gen 2x2 PCIe Card – USB‑C 20Gbps PCI Express 3.0 x4 Controller – USB Type‑C Add‑On PCIe Expansion Card – Windows/Linux | Device Type | USB adapter |
| Form Factor | Plug-in card – low profile | Interface (Bus) Type | PCI Express 3.0 x4 |
| NETWORKING | |||
| Ports | USB‑C 3.2 Gen 2x2 × 1 | Connectivity Technology | Wired |
| Data Link Protocol | USB 3.2 Gen 2x2 | Data Transfer Rate | 20 Gbps |
| Compliant Standards | USB 2.0, USB 3.0, USB 3.1, USB 3.1 Gen 2, xHCI 1.1, USB 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 2x2 | ||
| PROCESSOR / MEMORY | |||
| Processor | ASMedia ASM3242 | ||
| EXPANSION / CONNECTIVITY | |||
| Interfaces | 1 × USB 3.2 Gen 2x2 – 24‑pin USB‑C | ||
| MISCELLANEOUS | |||
| Included Accessories | Low‑profile bracket | MTBF | 3,126,209 hours |
| Compliant Standards | FCC, RoHS, UASP | ||
| SOFTWARE / SYSTEM REQUIREMENTS | |||
| OS Required | Windows Server 2012 R2 / 2016 / 2019; Linux LTS (3.5+); macOS 10.13–10.15, 11.0–13.0; Windows 8 / 8.1 / 10 / 11 | ||
| DIMENSIONS & WEIGHT | |||
| Width | 3.1 in | Depth | 2 in |
| Height | 0.9 in | Weight | 1.3 oz |
| DIMENSIONS & WEIGHT (Shipping) | |||
| Shipping Width | 5.6 in | Shipping Depth | 6.7 in |
| Shipping Height | 1.2 in | Shipping Weight | 3.56 oz |
| MANUFACTURER WARRANTY | |||
| Service & Support | Limited warranty – 2 years | ||
| ENVIRONMENTAL PARAMETERS | |||
| Min Operating Temperature | 32 °F | Max Operating Temperature | 185 °F |
| Humidity Range Operating | 15 – 90% | ||
| SPECIAL FEATURE | |||
| COO | Inquire | TAA compliance | Inquire |
