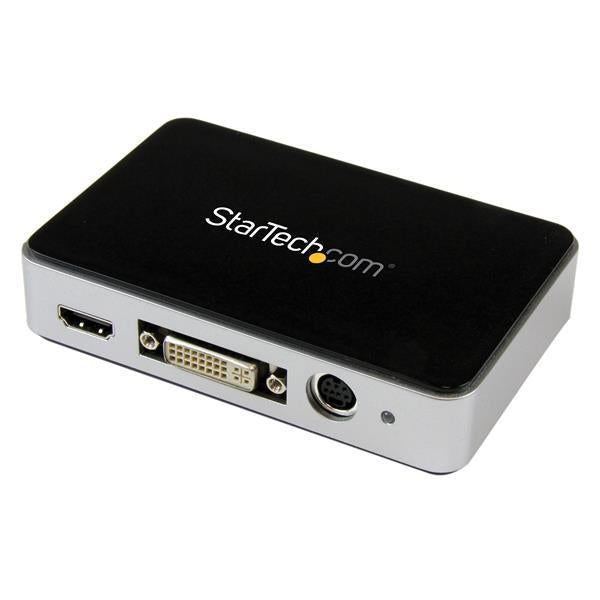

Item model number: USB3HDCAP
  • Seamless picture quality with USB 3.0 bandwidth enabling you to capture 1080p video at 60fps
  • Record from virtually any device, with support for HDMI, DVI, VGA, and Component video input sources
  • Supports 2-channel stereo audio (HDMI / RCA)
  • NTSC and PAL systems supported
  • Supports 16:9 and 4:3 aspect ratio




Technical details
Internal No Video capture resolution (max) 1920 x 1080 pixels
Host interface USB 3.0 Package dimensions (WxDxH) 149 x 214 x 56 mm
Video
Supported video modes 1080i,1080p,480i,480p,576i,576p,720p Analog signal format system NTSC,PAL,PAL 60,PAL M
Audio
Audio support Yes
File formats
Video compression formats H.264,MPEG4
Ports & interfaces
HDMI ports quantity 1 DVI-I ports quantity 1
S-Video inputs quantity 1
Weight & dimensions
Weight 106 g Width 75.5 mm
Weight & dimensions
Height 24.5 mm Depth 114.4 mm
Software
Windows operating systems supported Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Operational conditions
Operating relative humidity (H-H) 20 - 80% Operating temperature (T-T) 0 - 35 °C
Storage temperature (T-T) -5 - 40 °C
Packaging data
Package weight 410 g
Certificates
Certification CE, FCC RoHS compliance Yes
Packaging content
Manual Yes Interface adapters included DVI-I male - VGA female
Cables included AV,USB
