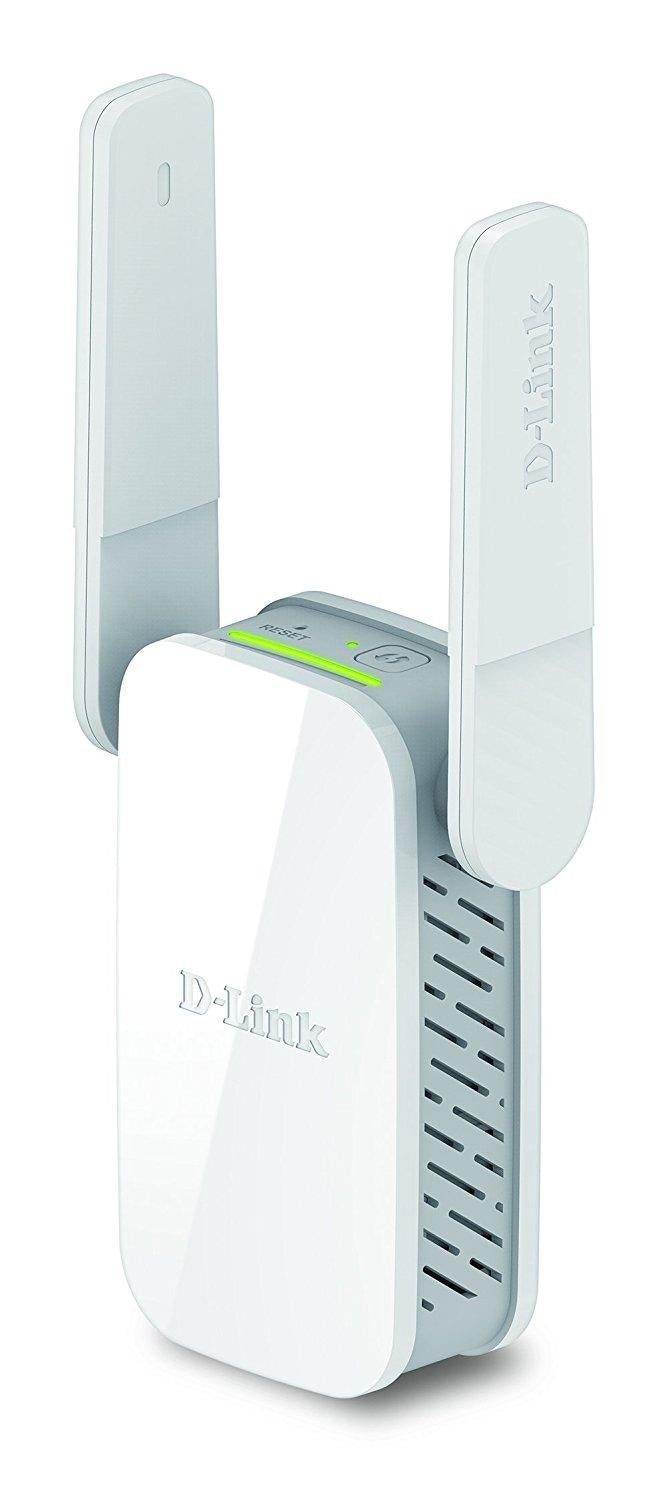

Wireless AC1200 Range Extender (DAP-1610)

Item model number: DAP-1610

• More Coverage – Extend the range of your existing Wi-Fi network and eliminate dead zones
• Performance – Powerful AC1200 performance with speeds up to 1200 Mbps (300 Mbps -2.4GHz and 867Mbps – 5GHz)
• Smart Signal Indicator – Shows you where to place the range extender for optimal performance

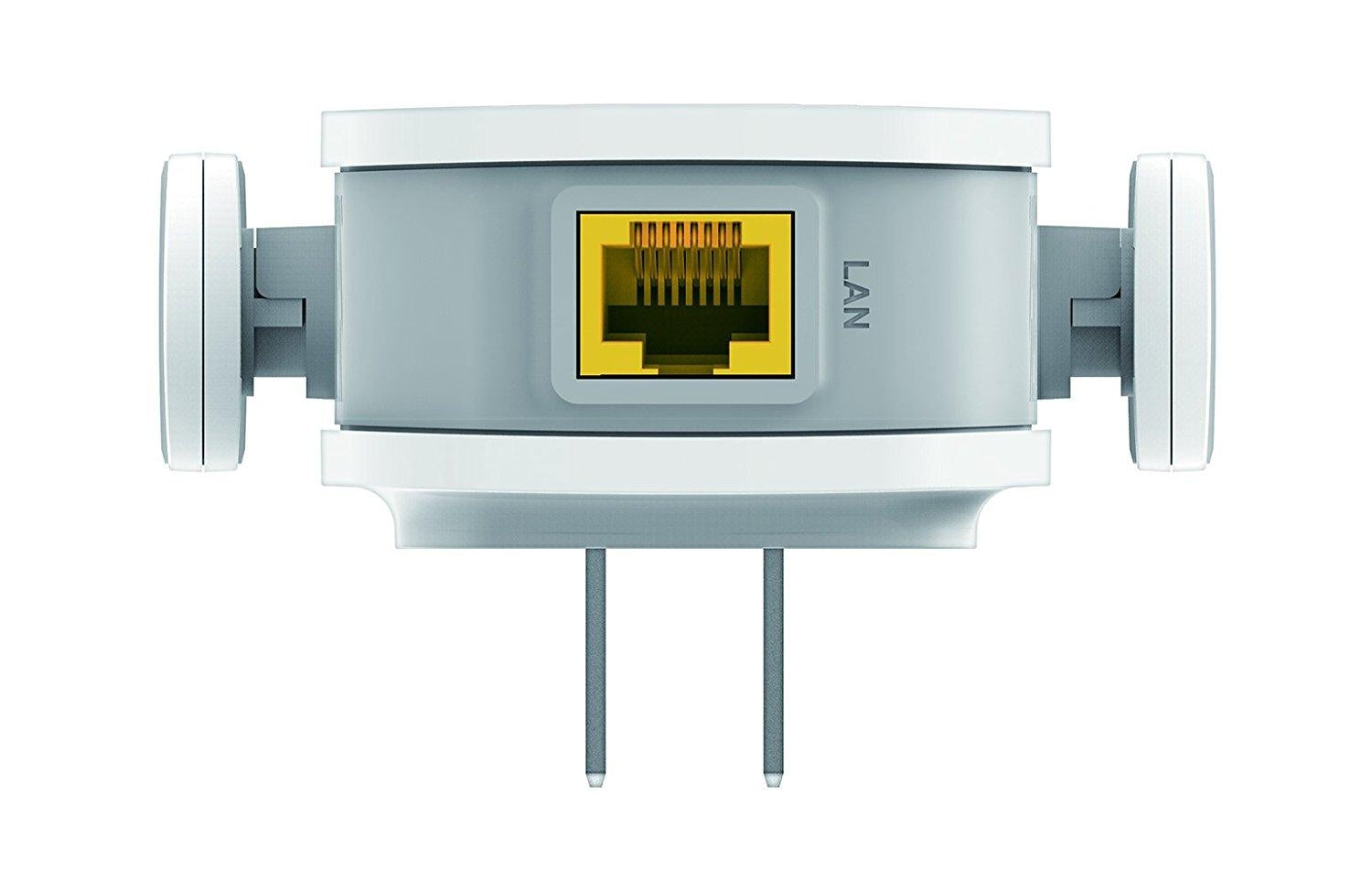

• 10/100/1000 Gigabit Ethernet Port – Connect wired devices to your wireless network
• Backward Compatible – Compatible with virtually all wireless devices and Wi-Fi routers/modems

Specification

Performance
Data transfer rate	1167 Mbit/s	WPS push button	Yes
Type	Network transmitter & receiver	Ethernet LAN data rates	10,100 Mbit/s

Antenna
Antenna type	External	Antennas quantity	2

Networking
Web-based management	Yes	Cabling technology	10/100Base-T(X)
Wi-Fi	Yes	Wi-Fi standards	IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Networking standards	IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3ab	Security algorithms	WPA,WPA2
Frequency band	2.4/5

Ports & interfaces
Ethernet LAN (RJ-45) ports	1

Design
Certification	FCC, IC, CE2. UL	LED indicators	Signal strength, Status, WPS
Colour of product	White	Reset button	Yes

Power
AC input frequency	50/60	AC input voltage	110-240

Operational conditions
Operating relative humidity (H-H)	10 - 90%	Operating temperature (T-T)	0 - 35 °C
Storage relative humidity (H-H)	5 - 95%	Storage temperature (T-T)	-20 - 70 °C

Weight & dimensions
Width	97.9 mm	Height	48.7 mm
Depth	50.7 mm	Weight	120 g
