TP-LINK

TP-LINK TL-SG1016PE network switch Managed Gigabit Ethernet (10/100/1000) Black Power over Ethernet (PoE)

$175.98 CAD
Shipping calculated at checkout.
Item model number: TL-SG1016PE
VLSKU: 105287
  • 16 Gigabit Ethernet ports deliver up to 2000 Mbps of dedicated, non-blocking bandwidth per port
  • 8 PoE Plus ports (802.3at/af) providing up to 30w per port/110w total PoE power
  • Configure VLAN, QoS, IGMP Snooping, Link Aggregation (LAG), Cable Diagnostics, Loop Prevention and Port Mirroring on the switch

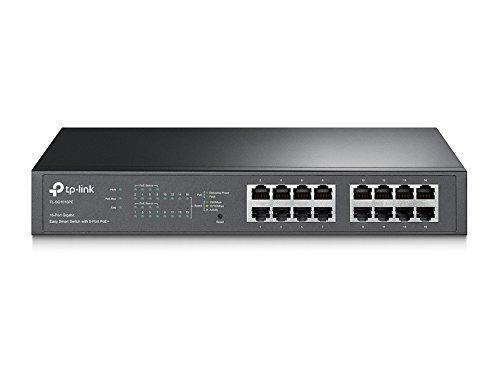

  • Desktop/1U Rack mountable form factor




Specification
Management features
Web-based management Yes Quality of Service (QoS) support Yes
Switch type Managed
Ports & interfaces
Copper ethernet cabling technology 10BASE-T,100BASE-TX,1000BASE-T Basic switching RJ-45 Ethernet ports quantity 16
Gigabit Ethernet (copper) ports quantity 16 Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Networking
Full duplex Yes Port mirroring Yes
Auto MDI/MDI-X Yes Flow control support Yes
Networking standards IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x Broadcast storm control Yes
Link aggregation Yes 10G support No
Cable types supported Cat3,Cat4,Cat5,Cat5e,Cat6 Rate limiting Yes
Data transmission
Number of queues 4 Jumbo frames support Yes
Store-and-forward Yes Jumbo frames 9000
Throughput 23.8 Mpps Switching capacity 32 Gbit/s
MAC address table 8000 entries
Virtual LAN features
VLAN support Yes Tagged VLAN Yes
Number of VLANs 4000
Virtual LAN features
Port-based VLAN Yes
Security
Loop protection Yes IGMP snooping Yes
Design
Stackable No Certification FCC, CE, RoHS
Product colour Black LED indicators Yes
Performance
Auto-negotiation Yes
Power
Power consumption (max) 124.4 W AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes Power over Ethernet plus (PoE+) ports quantity 8
Power over Ethernet (PoE) power per port 30 W Total Power over Ethernet (PoE) budget 110 W
System requirements
Compatible operating systems Windows
Operational conditions
Storage temperature (T-T) -40 - 70 °C Operating temperature (T-T) 0 - 40 °C
Storage relative humidity (H-H) 5 - 90% Operating relative humidity (H-H) 10 - 90%
Packaging content
Cables included AC Resource CD Yes
Rack mount kit Yes
