Item model number: SV431HDU3A2
  • Easily share peripheral devices with built-in USB 3.0 hub
  • High definition video quality with support for resolutions up to 1080p
  • Full multimedia control with separate 3.5 mm auxiliary support
  • No software or drivers required
  • Independent HID keyboard and mouse ports




Networking
Ethernet LAN No
Ports & interfaces
Console USB ports quantity 4 Audio connections Yes

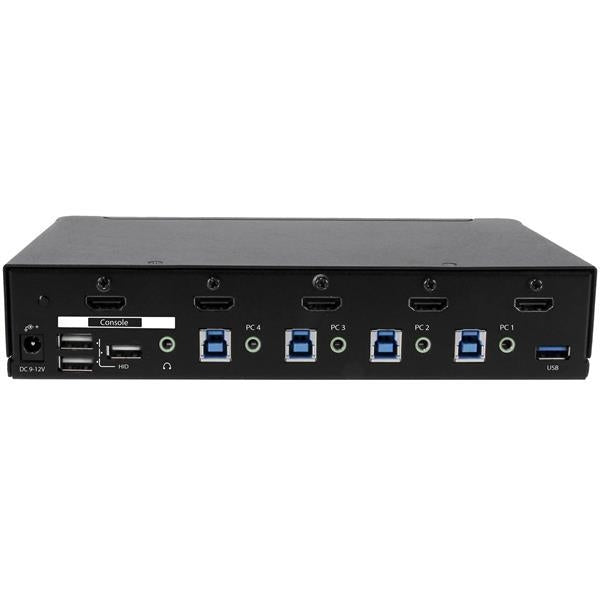

Console ports 3.5mm headphone, HDMI, USB A Headphone outputs 4
Video port type HDMI Mouse port type USB
USB 3.0 (3.1 Gen 1) Type-A ports quantity 3 Keyboard port type USB
USB connector type USB Type-A DC-in jack Yes
Number of computers controlled 4
Video
Maximum resolution 1920 x 1080 pixels
Design
Rack mounting Yes Hot keys Yes
Colour of product Black LED indicators Link, Power
Display
On Screen Display (OSD) No Built-in display No
Performance
Daisy chain No Audio channels 2.0
Plug and Play Yes Maximum cable length 10000 m
Power
Compatible power plug types AU,EU,UK,US Plug type Type M
Output current 1.5 A Output voltage 12 V
Input current 0.6 AC input voltage 100-240
Operational conditions
Operating relative humidity (H-H) 0 - 80% Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -10 - 60 °C
Certificates
Certification CE, FCC, UL, PSE RoHS compliance Yes
Weight & dimensions
Width 130 mm Package weight 1.6 kg
Package height 88 mm Height 43 mm
Package depth 294 mm Depth 220 mm
Package width 247 mm Weight 1.06 kg
Packaging content
Rubber feet Yes Quick installation guide Yes
Other features
Audio support Yes IP control No
