Item model number: ST122DVIA
  • Supports resolutions of up to 1920 x 1200 pixels @ 60 Hz
  • Split both video and 3.5mm analog stereo audio
  • DVI, and HDCP compliant for easier HD video distribution
  • Accurate and reliable reproduction of digital video signal, with no signal attenuation or distortion
  • Easy setup for a quick connection in minutes




Ports & interfaces

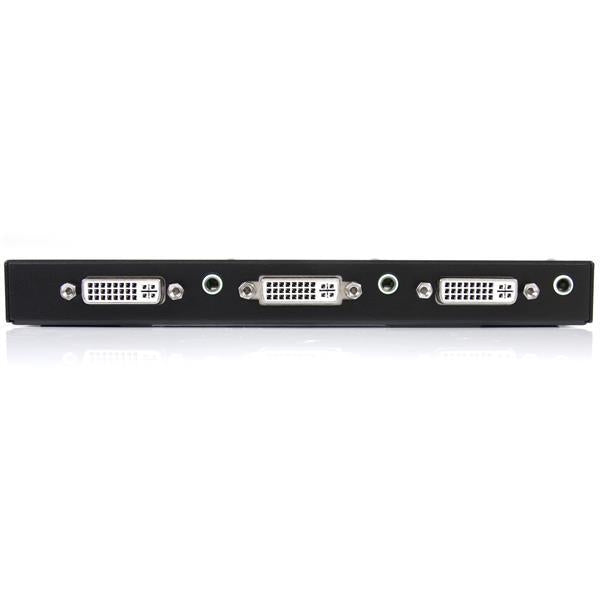

Connector(s) DVI-D, 3.5 mm Video port type DVI
Video ports quantity 2 Audio ports quantity 3

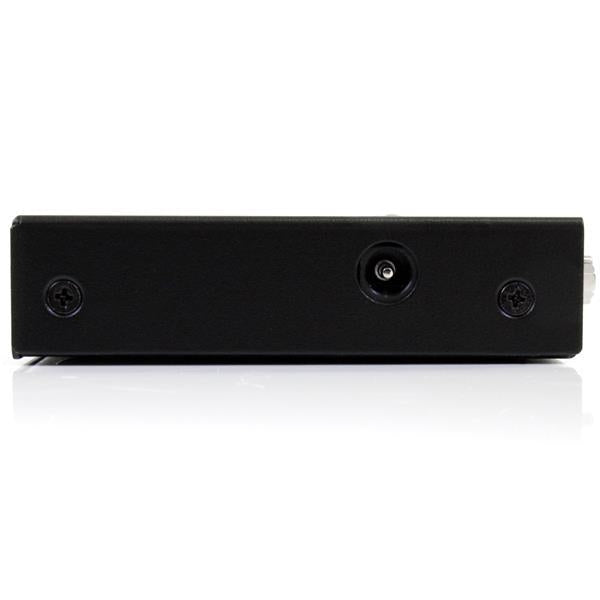

DC-in jack Yes
Video
Maximum resolution 1920 x 1200 pixels HDCP Yes
Colour
Colour of product Black
Power
Power consumption (typical) 5.4 W Output current 0.6 A
Output voltage 9 V
Operational conditions
Storage temperature (T-T) -20 - 60 °C Operating temperature (T-T) 0 - 40 °C
Operational conditions
Operating relative humidity (H-H) 0 - 80%
Indication

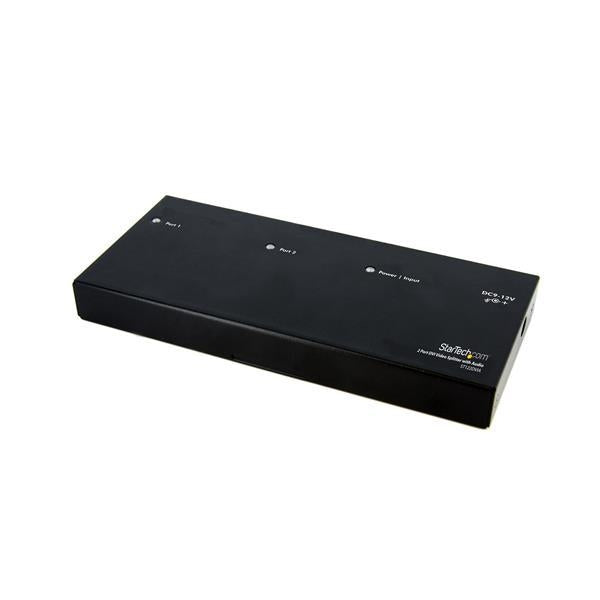

LED indicators Link Power LED Yes
Technical details
Housing material Aluminium
Weight & dimensions
Package length 21.3 cm Package weight 800 g
Package height 100 mm Dimensions (WxDxH) 85.2 x 181.4 x 20 mm
Package width 94 mm Weight 600 g

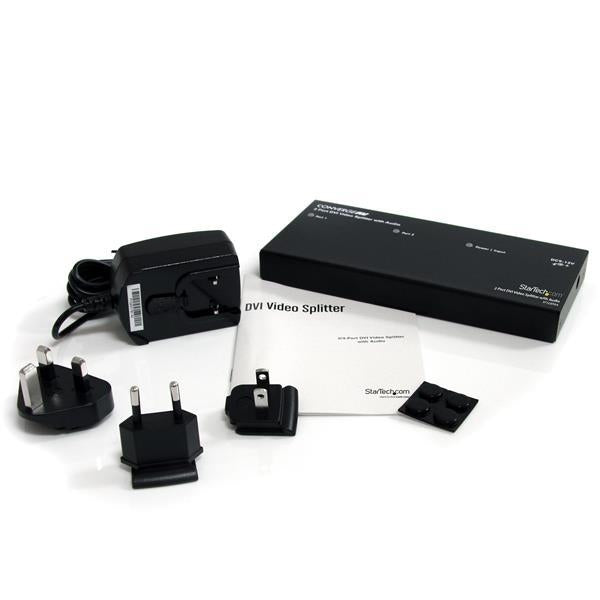

Packaging content
Manual Yes Included power plug types AU,EU,NA,UK
