Item model number: SV831DVIU
  • Supports DVI/HDMI resolutions up to 1920x1200
  • Can be used with DVI to HDMI adapters to connect HDMI based systems
  • Support for most combo/wireless keyboard and mice
  • OS independent – No software or drivers required

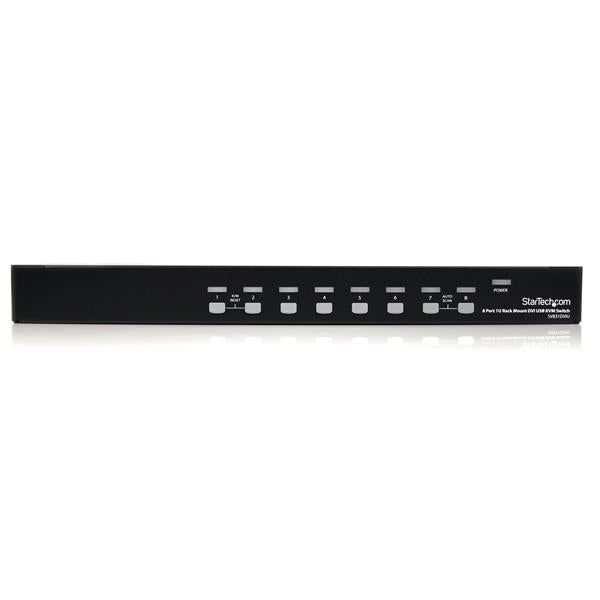

  • Front panel push-buttons and Hot-key functions allow for easy switching
  • Auto-scan function cycles through computers sequentially
  • Connects to USB-based computer systems
  • USB console interfaces for keyboard and mouse
  • Supports Mac® and Sun keyboard mapping - Keyboard states automatically saved and restored when switching computers
  • Rugged, all-metal 1U rack-mountable chassis
  • Supports Microsoft IntelliMouse (Pro)




Networking
Ethernet LAN No

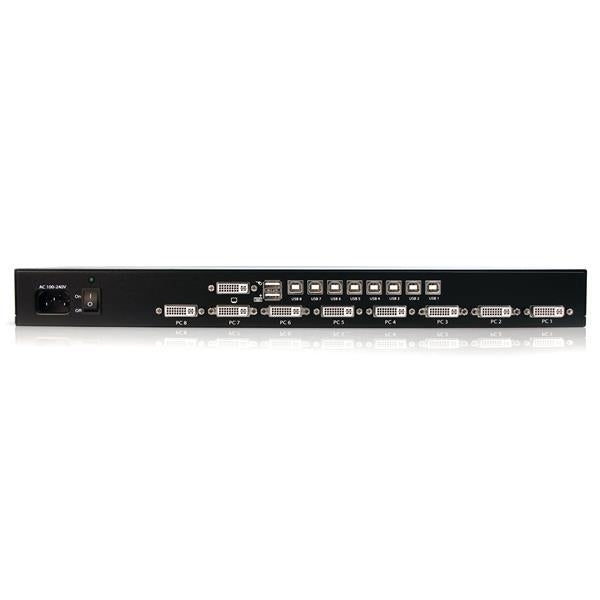

Ports & interfaces
Audio connections No USB 2.0 ports quantity 10
Video port type DVI-I Mouse port type USB
Keyboard port type USB Number of computers controlled 8
Video
Maximum analog resolution 1920 x 1200 pixels Maximum resolution 1920 x 1200 pixels
Design
Mean time between failures (MTBF) 45254 h Rack mounting 1U
Hot keys Yes Material Steel
Colour of product Black LED indicators Yes
Performance
Daisy chain No
Power
Input current 1.8 Output voltage 12 V
AC input voltage 100-240
Power
Compatible power plug types AU,EU,UK,US Plug type Type M
Output current 4 A External power adapter Yes
Operational conditions
Operating relative humidity (H-H) 0 - 80% Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Certificates
Certification CE, FCC RoHS compliance Yes
Weight & dimensions
Width 438 mm Package weight 4 kg
Package height 87 mm Height 44 mm
Package depth 261 mm Depth 180 mm
Package width 590 mm Weight 3.5 kg

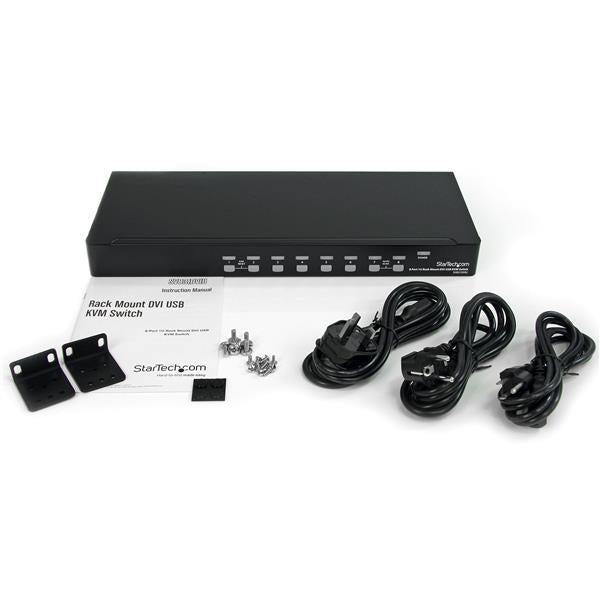

Packaging content
Manual Yes Rack mount kit Yes
Other features
IP control Yes
