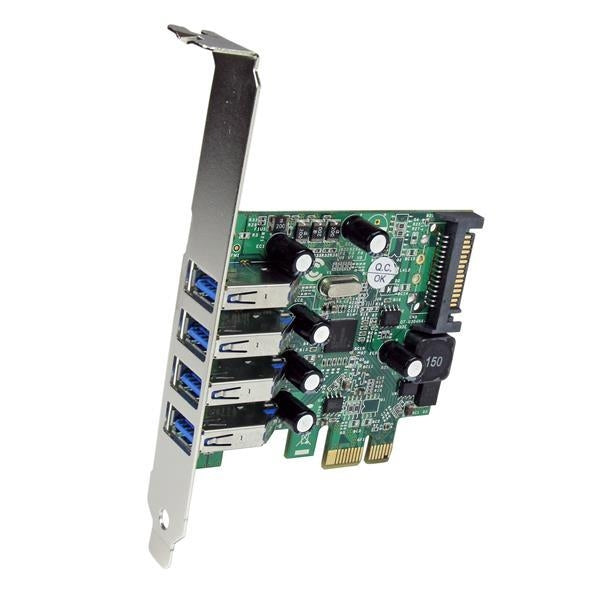

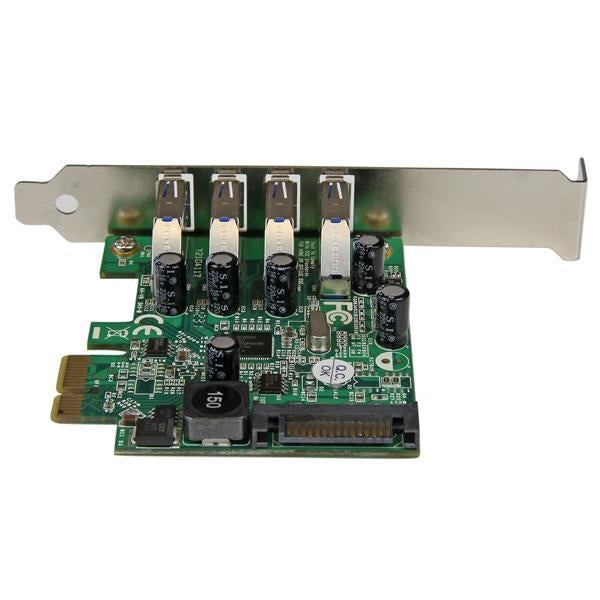

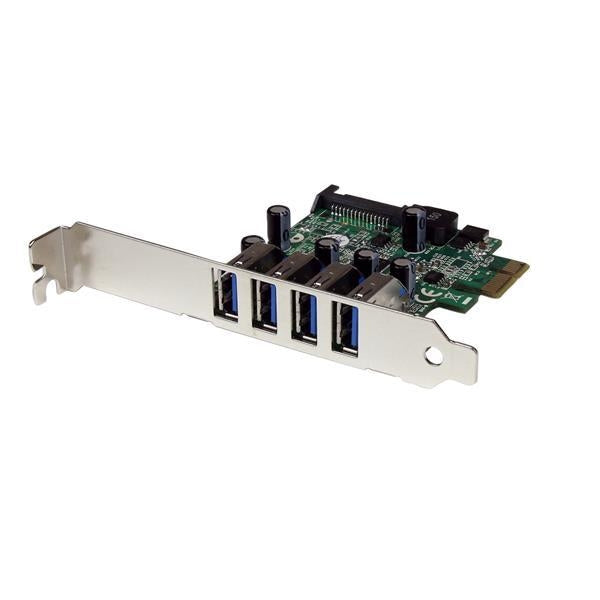

Item model number: PEXUSB3S4V

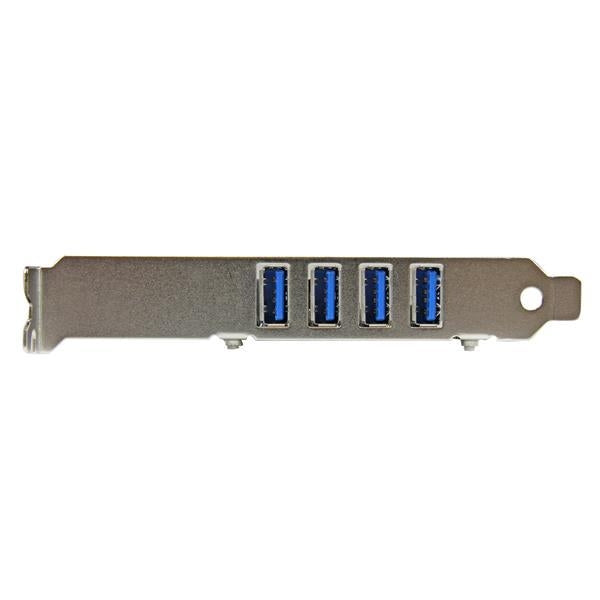

  • 4 external USB 3.0 ports in a stacked layout
  • UASP support for more efficient data transfer
  • Fully compliant with USB 3.0 revision 1.0 specifications and Intel xHCI rev0.95 specifications
  • Built-in optional SATA power connector for bus-powered USB devices
  • Optionally provides up to 900mA per USB port
  • Backward compatible with USB 2.0 and USB 1.0/1.1 devices
  • Compliant with PCI Express 2.0 specifications
  • Includes a Low Profile/half-height installation bracket




Ports & interfaces
Internal SATA ports quantity 1 PCIe version 2.0
CardBus PCMCIA slot type No USB 3.0 (3.1 Gen 1) Type-A ports quantity 4
Output interface USB 3.0 Internal Yes
Host interface PCIe
Performance
Data transfer rate (max) 5 Gbit/s UASP support Yes
Chipset NEC uPD720201
Design
RoHS compliance Yes Certification CE, FCC
System requirements
Server operating systems supported Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016 Windows operating systems supported Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Operational conditions
Operating relative humidity (H-H) 20 - 80% Operating temperature (T-T) 5 - 50 °C
Storage temperature (T-T) -20 - 70 °C
Weight & dimensions
Width 68 mm Package weight 100 g
Package height 30 mm Height 75 mm
Package depth 165 mm Depth 19 mm
Package width 130 mm Weight 45 g

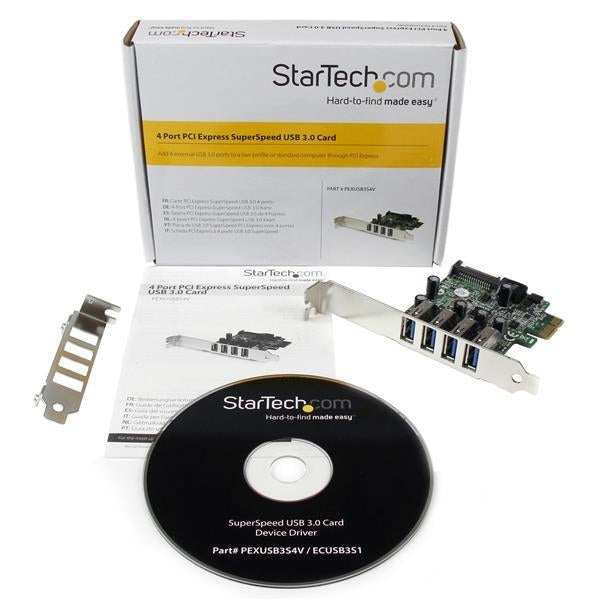

Packaging content
Manual Yes Mounting brackets included Yes
Drivers included Yes
Other features
Mac compatibility No Compatible operating systems Windows XP (32/64-bit)/ Server 2003 (32/64-bit)/ Server 2008 R2/ Vista (32/64-bit)/ 7 (32/64-bit)/ 8 (32/64-bit)
