Item model number: SV431DDVDUA
  • Direct channel selection and operation using front panel push-button or keyboard hotkeys
  • Supports a maximum digital resolution of 1920 x 1200 and analog of 1920 x 1440; Recommended resolution is 1920 x 1200
  • OS independent (no drivers or software required)
  • Independent or simultaneous audio switching
  • Full support for plug-n-play peripherals
  • Rugged, all-metal chassis for use in harsh environments
  • Status LED display for easy port status monitoring
  • USB style keyboard and mouse, plus two other USB 2.0 peripherals can be shared between up to two computers
  • Tone indicator for computer switching
  • Selectable time intervals for auto scan
  • Rear function key to adjust video strength
  • HDCP compliant
  • Support DDC2B emulation and EDID pass through, which allows the display adapter to recognize and auto configure screens to match the display capabilities
  • Supports Dual Monitor/Flat Panel Displays [1 x DVI + 1 x VGA]




Ports & interfaces
Console USB ports quantity 4 Audio connections Yes
Number of microphone inputs 1 USB 2.0 hub ports quantity 2
Console ports 3.5mm headphone, 3.5mm mic, DVI-I, USB A, VGA (D-Sub) Headphone outputs 1
Video port type VGA/DVI-I Mouse port type USB
Keyboard port type USB USB connector type USB Type-A
DC-in jack Yes Number of computers controlled 4
Video
Maximum analog resolution 1920 x 1400 pixels Maximum resolution 1920 x 1200 pixels
Maximum digital resolution 1920 x 1200 pixels
Design
Material Steel Colour of product Black
LED indicators Yes
Display
Built-in display No
Performance
Number of users 1 user(s) Daisy chain No
Power
AC input voltage 110-240
Power
Compatible power plug types AU,EU,UK,US Plug type Type M
Output current 1.5 A Output voltage 12 V
External power adapter Yes Input current 0.8
Operational conditions
Operating relative humidity (H-H) 0 - 80% Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Certificates
Certification CE, FCC, UL RoHS compliance Yes
Weight & dimensions
Width 220 mm Package weight 1.8 kg
Package height 247 mm Height 60 mm
Package depth 300 mm Depth 163 mm
Package width 88 mm Weight 1.24 kg
Packaging content

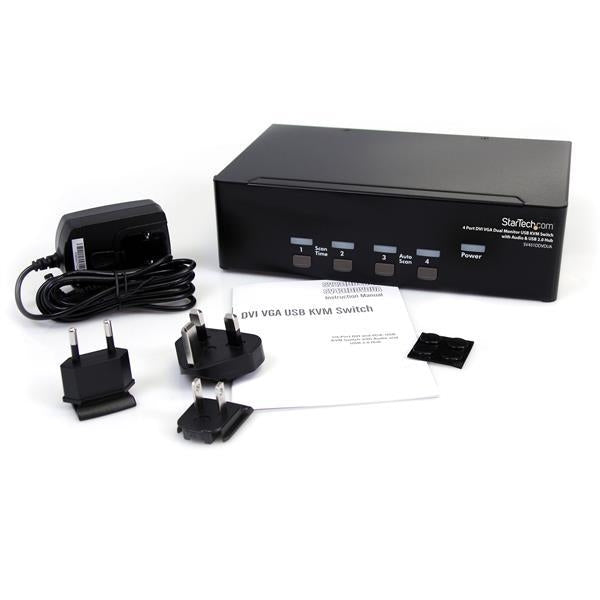

Manual Yes AC adapter included Yes
Rubber feet Yes
Other features
IP control No
