ASUS

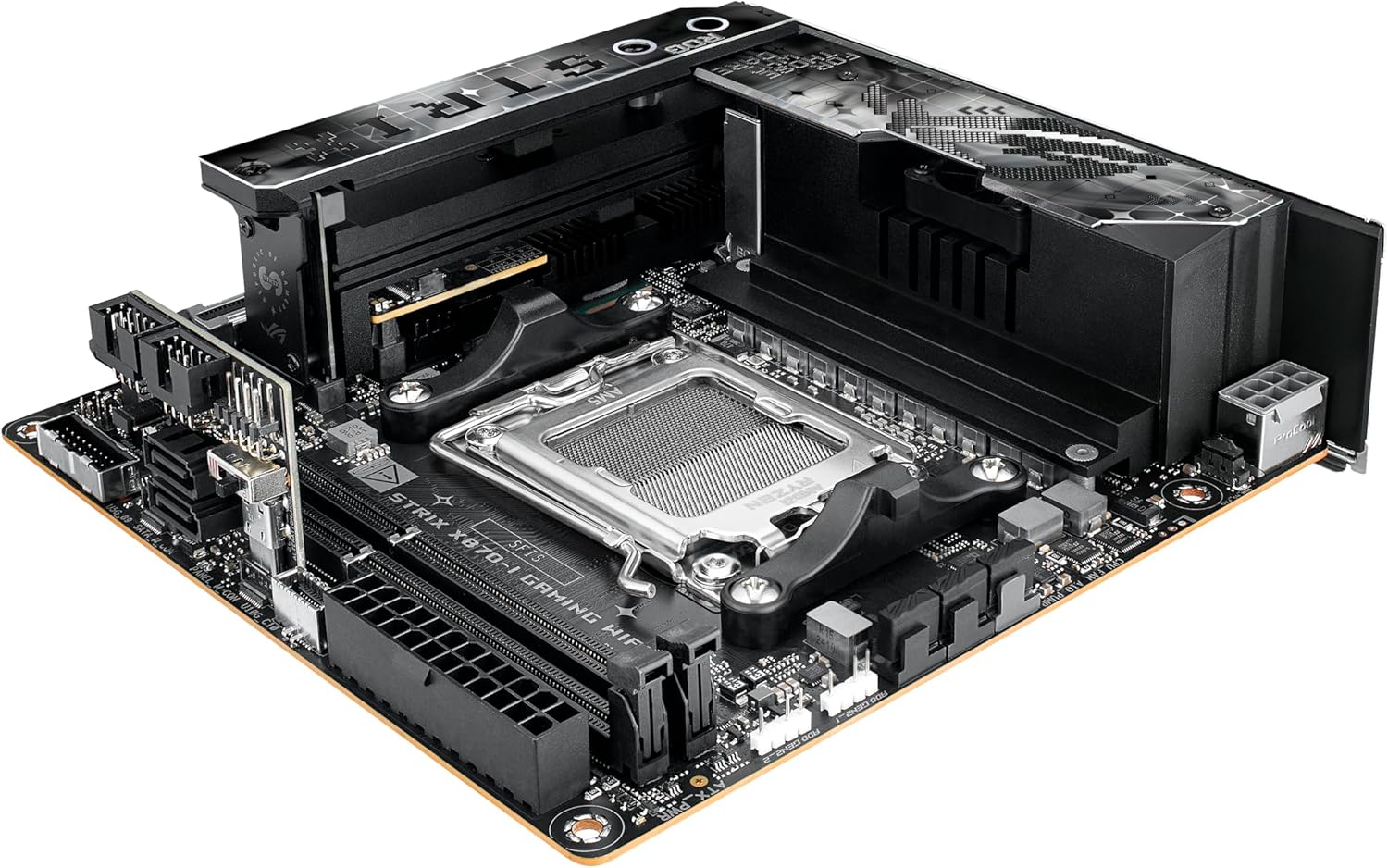

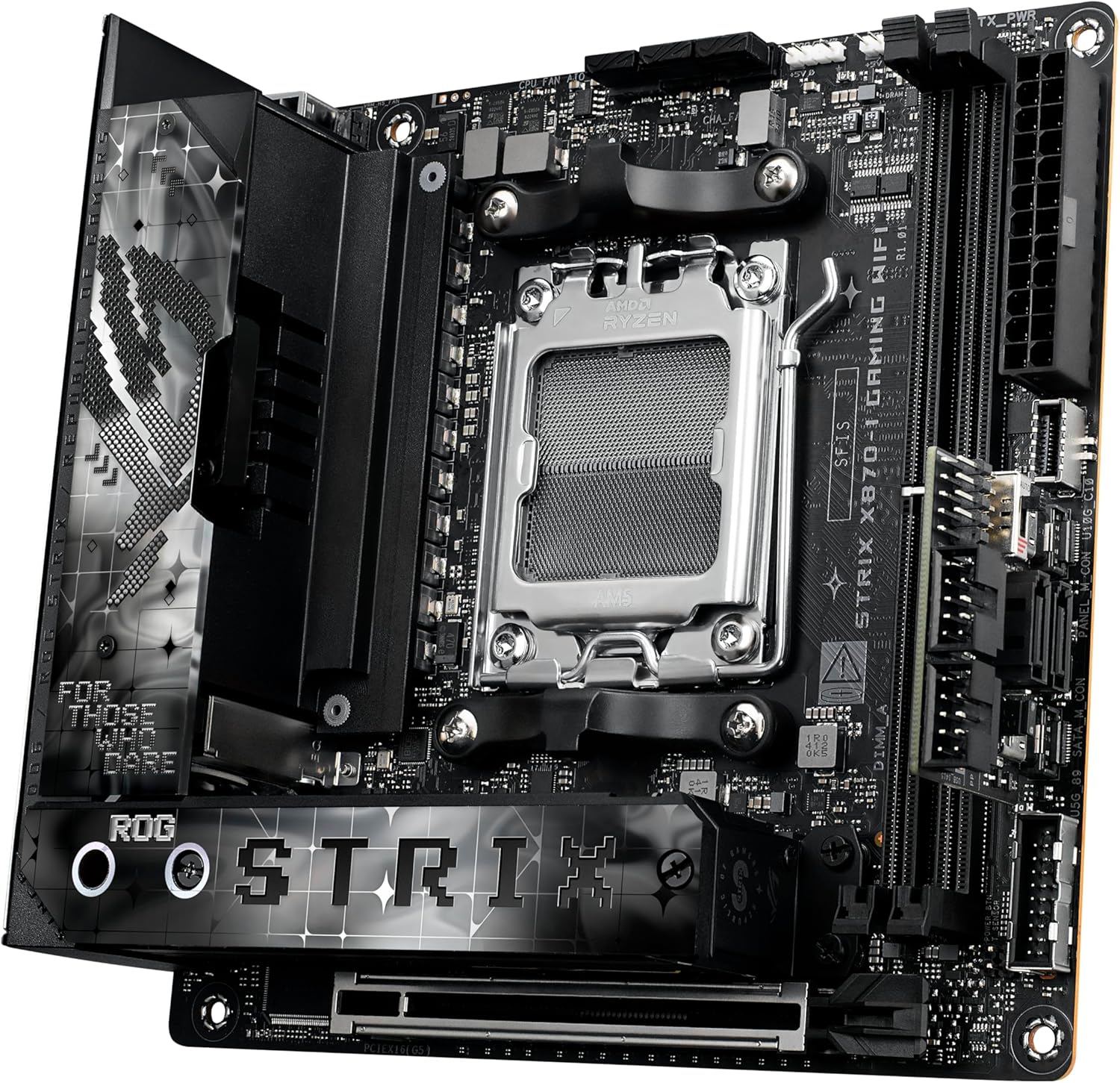

ASUS ROG STRIX X870-I GAMING WIFI AMD AM5 X870 Mini ITX motherboard 10+2+1 power stages, Dynamic OC Switcher, Core Flex, DDR5 AEMP, WiFi7, 2x M.2, PCIe®5.0, Q-Release Slim, USB4, AI OCing & Networking
$679.99 CAD
/
Shipping calculated at checkout.
Item model number: ROG STRIX X870-I GAMING WIFI
- Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AMD AM5 Socket: Ready for AMD Ryzen 7000, 8000 and 9000 series desktop processors
- Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking and AEMP to simplify setup and improve performance
- ROG Strix Overclocking technologies: Dynamic OC Switcher, Core Flex, Asynchnorous Clock and PBO Enhancement

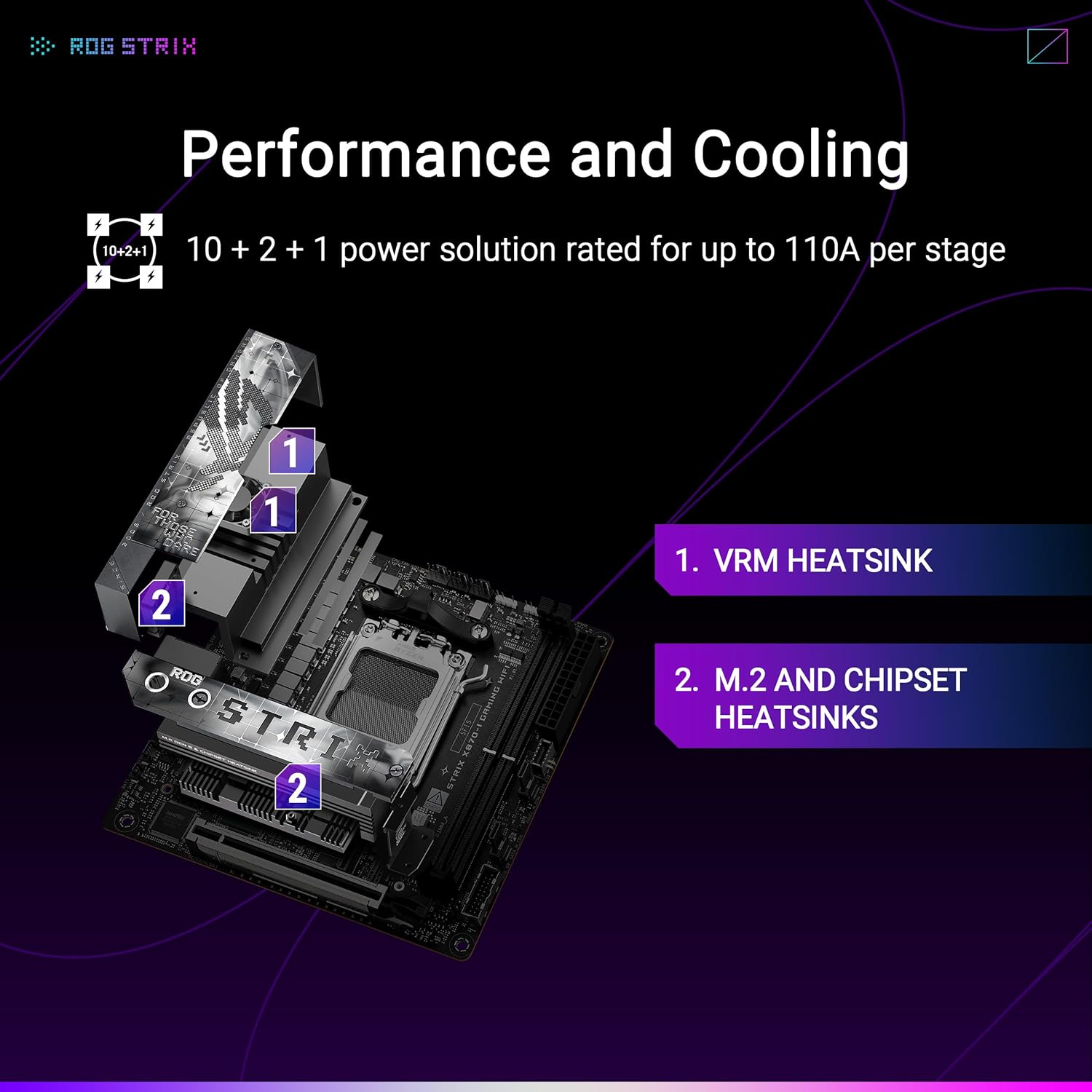

- Robust Power Solution: 10+2+1 power solution rated for 110A per stage with ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
- Optimized Thermal Design: Massive heatsinks with integrated I/O cover and high-conductivity thermal pads, with L-shaped backplate
- Latest M.2 Support: One onboard PCIe 5.0 M.2 slot and one PCIe 4.0 M.2 slot, all with substantial cooling solutions
Specifications:
| OVERVIEW | |||
| Brand | ASUS | Series | ROG |
| Model | STRIX X870-I GAMING WIFI | ||
| SUPPORTED CPU | |||
| CPU Socket Type | AM5 | CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| CHIPSETS | |||
| Chipset | AMD X870 | ||
| MEMORY | |||
| Number of Memory Slots | 4x288pin (DDR5) | Maximum Memory Supported | 96GB |
| ECC Supported | Non-ECC | Buffer Supported | Un-buffered |
| Memory Feature | 2 x DIMM slots, max. 96GB, DDR5 | ||
| Supported Speeds | 8400+MT/s (OC) with Ryzen™ 9000 Series, 8600+MT/s (OC) with Ryzen™ 8000 Series, 8000+MT/s (OC) with Ryzen™ 7000 Series | ||
| Additional | Dual channel memory architecture; Supports AMD EXPO; ASUS AEMP | ||
| EXPANSION SLOTS | |||
| PCIe 5.0 x16 | 1 x PCIe 5.0 x16 slot (for Ryzen 9000 & 7000 Series) | PCIe 4.0 x16 | 1 x PCIe 4.0 x16 slot (supports x8/x4 mode, for Ryzen 8000 Series) |
| STORAGE DEVICES | |||
| SATA 6Gb/s | 2 x SATA 6Gb/s | M.2 (Slot 1) | For Ryzen 9000 & 7000: Key M, 2280, PCIe 5.0 x4; For Ryzen 8000: Key M, 2280, PCIe 4.0 x4 |
| M.2 (Slot 2) | For AMD X870 Chipset: Key M, 2242/2260/2280 (supports PCIe 4.0 x4) | ||
| *** Install ROG FPS Card to support 2 x SATA 6Gb/s ports. | |||
| SATA RAID | |||
| SATA RAID | AMD RAIDXpert2 supports PCIe RAID 0/1/10 and SATA RAID 0/1 | ||
| ONBOARD LAN | |||
| Max LAN Speed | 2.5Gbps | Wireless LAN | Wi-Fi 7* (2x2, supports 2.4/5/6GHz, 320MHz bandwidth, up to 6.5Gbps) |
| BLUETOOTH | |||
| Bluetooth | v5.4*** | (*Refer to module manufacturer's website for details) | |
| REAR PANEL PORTS | |||
| Back I/O Ports | 1 x Antenna Bracket, 1 x Clear CMOS Button, 1 x HDMI, 1 x LAN (RJ45), 1 x Q-Flash Plus Button, 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.2 Gen 2x2 Type-C, 3 x USB 2.0/1.1, 4 x USB 3.1 Gen 2 Type-A | ||
| INTERNAL I/O CONNECTORS | |||
| Onboard USB | 1 x USB 10Gbps connector (supports USB Type-C®) and 1 x USB 5Gbps header (supports 2 additional USB 5Gbps ports) | ||
| OTHER CONNECTORS | |||
| Fan/Cooling | 1 x 4-pin CPU Fan, 1 x 4-pin AIO Pump, 1 x 4-pin Chassis Fan | Power | 1 x 24-pin Main Power, 1 x 8-pin +12V CPU Power |
| STORAGE RELATED | |||
| Storage Related | 2 x M.2 slots (Key M) | ||
| MISCELLANEOUS | |||
| Miscellaneous | 2 x Addressable Gen 2 headers, 1 x 2-pin Power Button header, 1 x Thermal Sensor header, 2 x USB Type-C® connectors for ROG FPS card | ||
| ROG FPS CARD | |||
| ROG FPS Card | 2 x SATA 6Gb/s ports, 1 x CPU Over Voltage jumper, 1 x Front Panel header, 1 x Alteration PCIe Mode switch, 2 x USB 2.0 headers (supports 3 additional USB 2.0 ports) | ||
| PHYSICAL SPEC | |||
| Form Factor | Mini ITX | Dimensions (W x L) | 6.7" x 6.7" |
| SOFTWARE FEATURE | |||
| BIOS Feature | 256 Mb Flash ROM, UEFI AMI BIOS | Software | ROG Exclusive Software (ROG CPU-Z, Dolby Atmos), ASUS Exclusive Software, Armoury Crate (AIDA64, Aura Creator, Aura Sync, Fan Xpert 4, GameFirst, HWiNFO, Power Saving), ASUS Driver Hub, ASUS GlideX, Adobe Creative Cloud (Free Trial), Norton 360 for Gamers (Free Trial), WinRAR (Free Trial), UEFI BIOS, AI Overclocking Guide, ASUS EZ DIY (CrashFree BIOS 3, EZ Flash 3, ASUS UEFI), BIOS EZ Mode, MyHotkey, FlexKey, Dynamic OC Switcher |
| FEATURES | |||
| ASUS Q-Design | M.2 Q-Latch, PCIe Slot Q-Release Slim (with PCIe SafeSlot), Q-Antenna, Q-Code, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot | ||
| ASUS Thermal Solution | M.2 heatsink, Aluminum backplate | ||
| ASUS EZ DIY | BIOS FlashBack™ button, BIOS FlashBack™ LED, Clear CMOS button, ProCool II, Pre-mounted I/O shield, SafeSlot, SafeDIMM | ||
| Aura Sync | Addressable Gen 2 header(s) | ||
| ROG STRIX HIVE II | 1 x USB Type-C® (to motherboard), 2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®), 1 x Headphone jack with mic in, 1 x Power button, 1 x FlexKey button, 1 x Volume control knob with mute button | ||
| Q-LED | (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | ||
| PACKAGING | |||

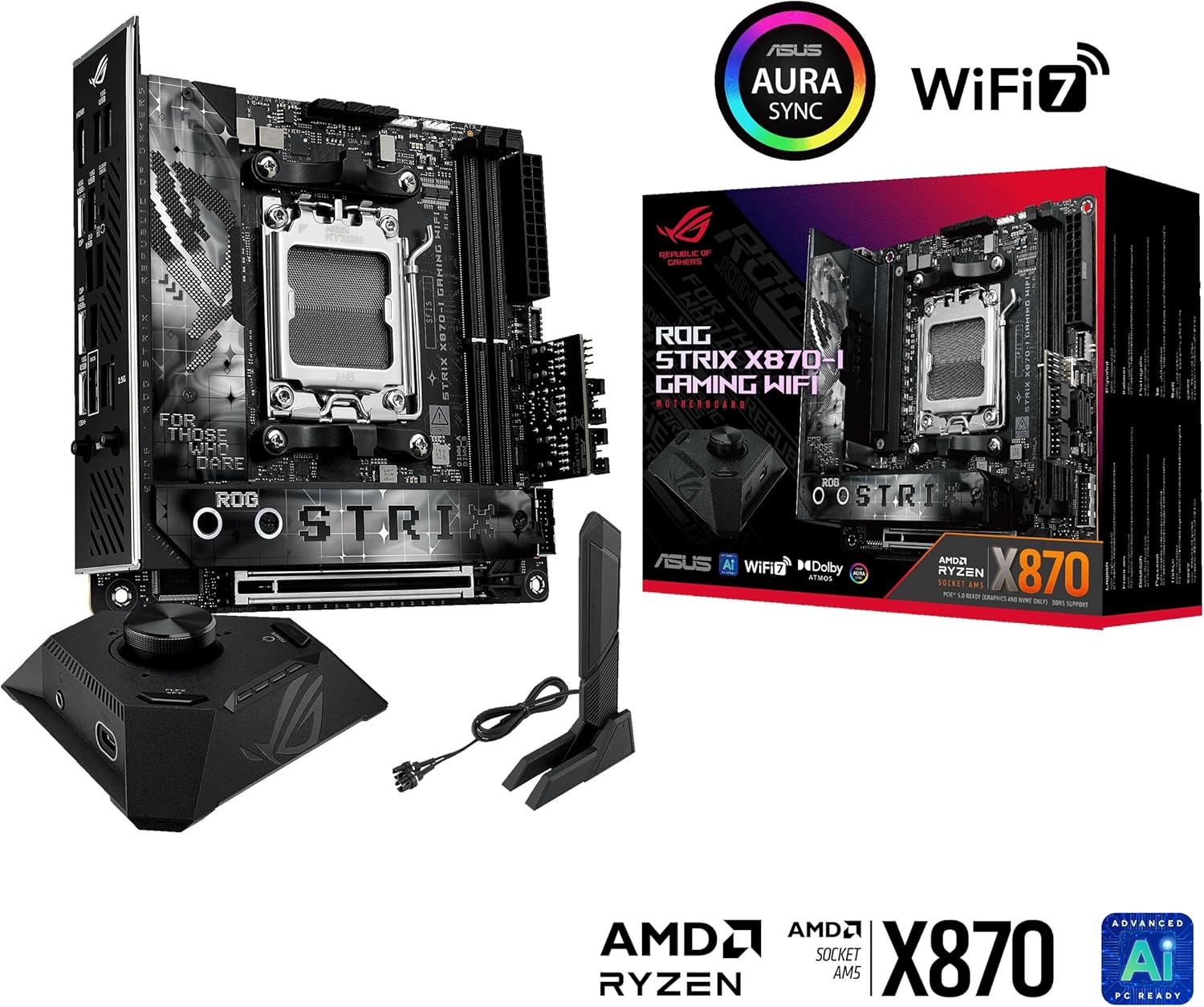

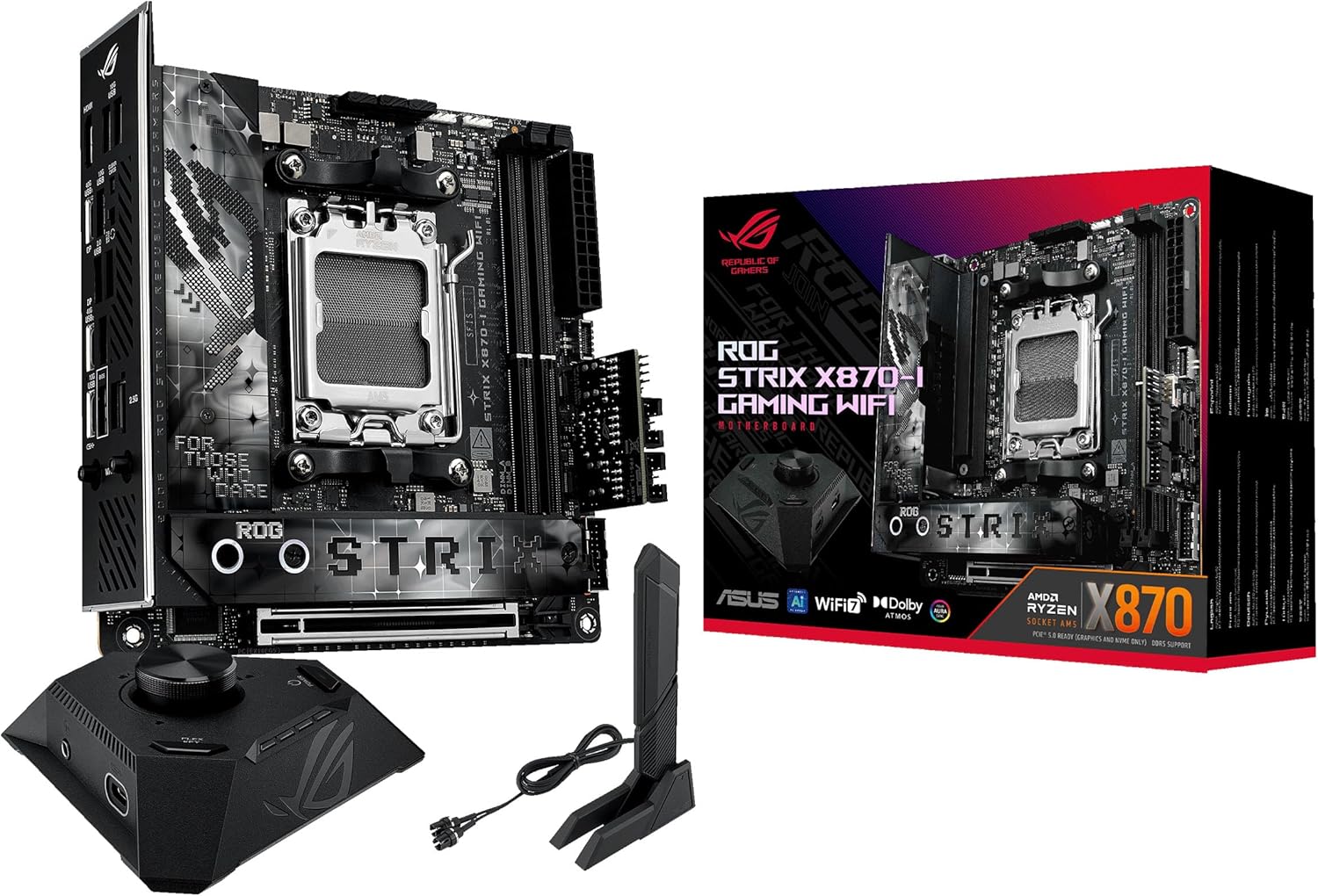

| Package Contents | Cables: 1 x Panel cable, 1 x ROG USB2.0 splitter cable, 2 x SATA 6Gb/s cables; ROG FPS Card: 1 x ROG FPS Card; ROG STRIX HIVE II: 1 x ROG STRIX HIVE II, 1 x USB Type-C® power connection cable | ||
| MISCELLANEOUS PACKAGING | |||
| Extras | 1 x ASUS WiFi Q-Antenna, 1 x Cable ties package, 1 x M.2 Q-Latch package, 1 x ROG key chain, 1 x ROG Strix stickers, 1 x M.2 rubber package | ||
| DOCUMENTATION | |||
| Included | 1 x Quick start guide | ||
| ADDITIONAL INFORMATION | |||
| Date First Available | September 29, 2024 | ||
